Wide Jaw Quick Link
Category：Snap Hook & Quick Link
- 售后QQ：
- 售后QQ：
Hotline：+86-532-68075169

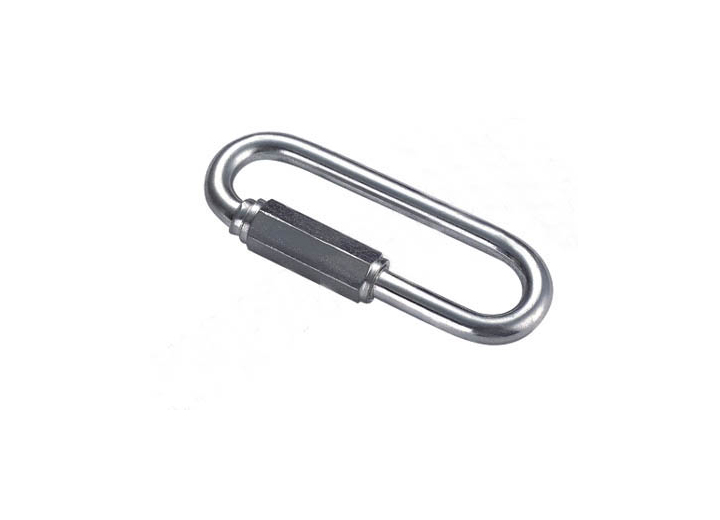

Wide Jaw Quick Link, Zinc Plated
Size

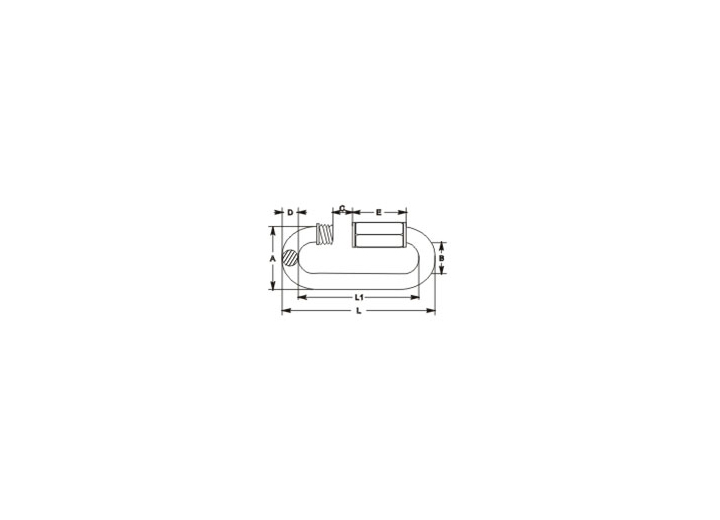

A B C D L L1 E S.W.L
mm
mm
mm
mm
mm
mm
mm mm lbs
3.5 17 10 5 3.5 46 39.5 16 180 4
19.5 11.5 5.5 4 53 45 19 350 5 23 13 6.5 5 62 52 22 550 6
26.5 14.5 7.5 6 70.5 58.5 25 770 7 30 16 8.5 7 79 65 28 880 8 33.5 17.5 10.5 8 88 72 31.5 1430 10 40.5 20.5 12 10 105.5 85.5 36 1760 12 47.5 23.5 15 12 124 100 43 2755
Details

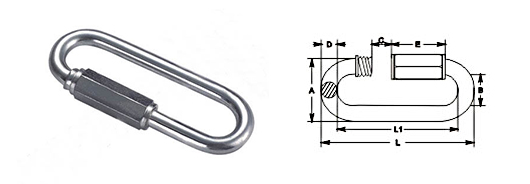

Wide Jaw Quick Link, Zinc Plated
|
Size |
A | B | C | D | L | L1 | E |
S.W.L |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm | mm |
lbs |
| 3.5 | 17 | 10 | 5 | 3.5 | 46 | 39.5 | 16 | 180 |
|
4 |
19.5 | 11.5 | 5.5 | 4 | 53 | 45 | 19 | 350 |
| 5 | 23 | 13 | 6.5 | 5 | 62 | 52 | 22 | 550 |
|
6 |
26.5 | 14.5 | 7.5 | 6 | 70.5 | 58.5 | 25 | 770 |
| 7 | 30 | 16 | 8.5 | 7 | 79 | 65 | 28 | 880 |
| 8 | 33.5 | 17.5 | 10.5 | 8 | 88 | 72 | 31.5 | 1430 |
| 10 | 40.5 | 20.5 | 12 | 10 | 105.5 | 85.5 | 36 | 1760 |
| 12 | 47.5 | 23.5 | 15 | 12 | 124 | 100 | 43 | 2755 |
