Snap Hook With Eyelet & Screw
Category：Snap Hook & Quick Link
- 售后QQ：
- 售后QQ：
Hotline：+86-532-68075169

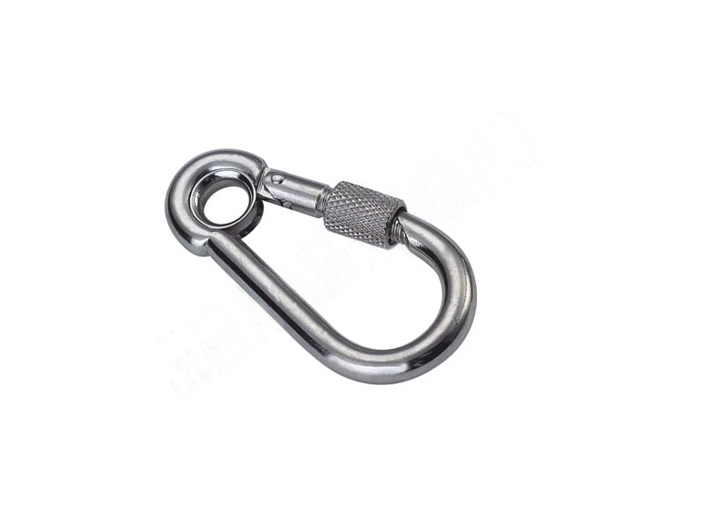

Snap Hook With Eyelet and Screw, Zinc Plated
Size

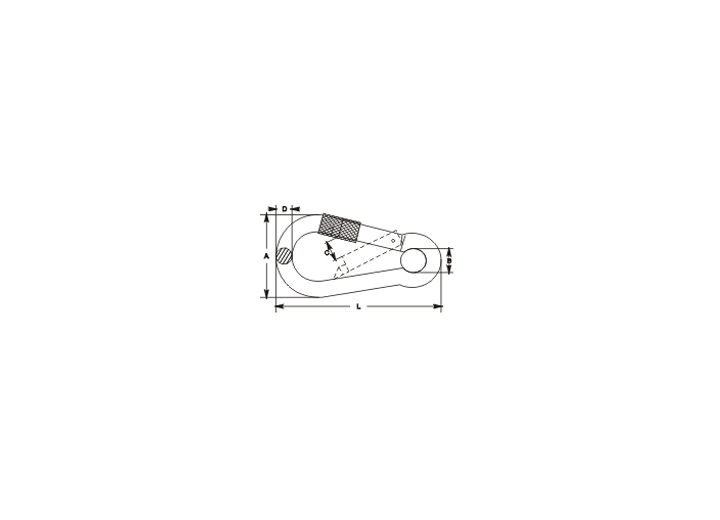

A B C D F S.W.L
mm
mm
mm
mm
mm
mm
lbs
5x50
5 25 50 5 6 150 6x60
6 30 60 5 7 250 7x70
7 35 70 7 7.5 320 8x80
8 40 80 10 8.5 400 9x90
9 45 90 10 9 500 10x100
10 50 100 13 10 650 11x120
11 57 120 13 16 700 12x140
12 67 140 15 18 800 13x160
13 74 160 17 25 1200 SAFETY FACTOR:4
Details

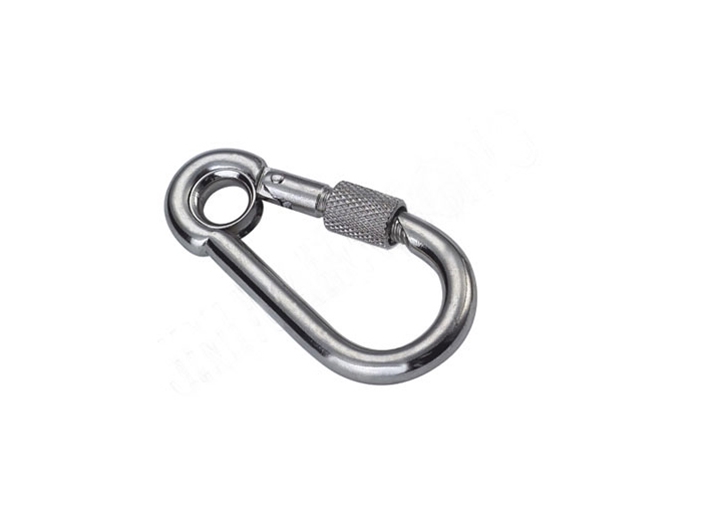

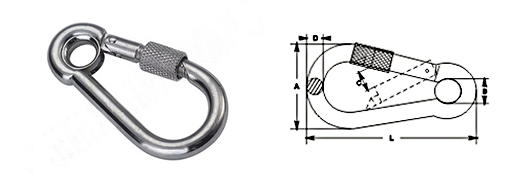

Snap Hook With Eyelet and Screw, Zinc Plated
|
Size |
A | B | C | D | F |
S.W.L |
|
mm |
mm |
mm |
mm |
mm |
mm |
lbs |
|
5x50 |
5 | 25 | 50 | 5 | 6 | 150 |
|
6x60 |
6 | 30 | 60 | 5 | 7 | 250 |
|
7x70 |
7 | 35 | 70 | 7 | 7.5 | 320 |
|
8x80 |
8 | 40 | 80 | 10 | 8.5 | 400 |
|
9x90 |
9 | 45 | 90 | 10 | 9 | 500 |
|
10x100 |
10 | 50 | 100 | 13 | 10 | 650 |
|
11x120 |
11 | 57 | 120 | 13 | 16 | 700 |
|
12x140 |
12 | 67 | 140 | 15 | 18 | 800 |
|
13x160 |
13 | 74 | 160 | 17 | 25 | 1200 |
SAFETY FACTOR:4
