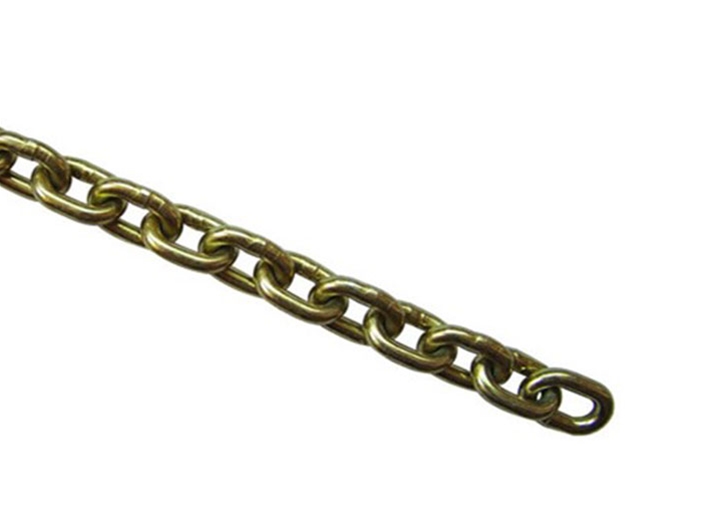

NACM90 Standard Link Chain

NACM90 Standard Link Chain

Proof Coil Chain,NACM90 (G30)

Size
 Material Diameter
 Working Load Limit
Breaking Force Minimum
 Inside Length
 Inside Width
inch
 inch
 mm
 lbs
 kg
 lbs
 kn
 lbs
 kn
 mm
 inch
 mm inch
1/8
 0.156
 4
 375
 170
 800
 3.6
 1600
 7.1
 23.9
 0.94
 6.4
 0.25
3/16
 0.217
 5.5
 800
 365
 1600
 7.2
 3200
 14.3
 24.8
 0.98
 7.7
 0.30
1/4
 0.276
 7.0
 1300
 580
 2600
 11.6
 5200
 23.1
 31.5
 1.24
 9.8
 0.38
5/16
 0.315
 8.0
 1900
 860
 3400
 15.1
 6800 30.2
 32.8
 1.29
 11.2 0.44
3/8
 0.394
 10.0
 2650
 1200
 5300
 23.6
 10600
 47.1
 35
 1.38
 14.0
 0.55
2/1
 0.512
 13.0
 4500
 2030 8950
 39.8
 17900
 79.6
 45.5 1.79 18.2
 0.72
5/8
 0.63
 16.0
 6900
 3130
 13600
 60.3
 27200
 120.6
 56
 2.2
 20.0
 0.79
3/4
 0.787
 20.0
 10600
 4800
 21200
 94.3
 42400
 188.5
 70
 2.76
 25.0
 0.98
7/8
 0.866
 22
 12800
 5810
 25600
 114.1
 51200
 228.1
 77
 3.03
 27.5
 1.08
1
 1.02
 26
 17900
 8140
 35800
 159.1
 71600
 318.2
 90.9
 3.58
 31.7
 1.25


High Test Chain,NACM90 (G43)

Size
 Material Diameter
 Working Load Limit
 Proof Test
 Breaking Force Minimum
 Inside Length
 Inside Width
mm
 inch
 inch
 mm
 lbs
 kg
 lbs
 kn
 lbs
 kn
 mm
 inch
 mm inch
7.0
 1/4 0.276
 7.0
 2600
 1180
 3750
 16.6 7500 33.1
 31.5
 1.24
 9.8
 0.38
8.0
 5/16
 0.315 8.0
 3900 1770 4900 21.6 9700 43.2
 32.8
 1.29
 11.2
 0.44
10.0 3/8
 0.394
 10.0
 5400
 2450
 7600
 33.8 15200 67.6 35
 1.38
 14.0
 0.55
13.0
 1/2
 0.512
 13.0
 9200
 4170
 12900 57.1 25700 114.2
 45.5
 1.79
 18.2 0.72
16.0 5/8
 0.63
 16.0
 11500
 5220
 19500
 86.5 38900 172.9
 56
 2.2
 20.0
 0.97
20.0
 3/4
 0.787
 20.0 16200 7350
 30400
 130.1 60700 270.2
 70 2.76 25.0
 0.98


Transport Chain,NACM90 (G70)

Size
 Material Diameter
 Working Load Limit
 Proof Test
 Breaking Force Minimum
 Inside Length
 Inside Width
mm
 inch
 inch
 mm
 lbs
 kg
 lbs
 kn
 lbs
 kn
 mm
 inch
 mm inch
7.0
 1/4 0.276
 7.0
 3150 1430 6100 27 12100 53.9
 31.5
 1.24
 9.8
 0.38
8.0
 5/16
 0.343 8.0 4700 2130 9400 41.6 18800 83.5 33.5
 1.29
 12.2
 0.48
10.0 3/8
 0.394
 10.0
 6600 2990 12400 55 24700 110 35
 1.38
 14.0
 0.55
11.9 7/16 0.468 11.9 8750 3970 17500 77.7 35000 155.4 41.6 1.64 16.6 0.65
13.0
 1/2
 0.512
 13.0
 11300
 5130 20900 92.9 41800 185.8
 45.5
 1.79
 18.2 0.72
16.0 5/8
 0.63
 16.0
 15800 7170 31600
 140.4 63200 280.8 56
 2.2
 20.0
 0.79
20
 3/4
 0.787
 20.0 24700 11200 49500
 149.9 98900 439.8
 70 2.76 25.0
 0.98
