Quick Link
Category：Snap Hook & Quick Link
- 售后QQ：
- 售后QQ：
Hotline：+86-532-68075169

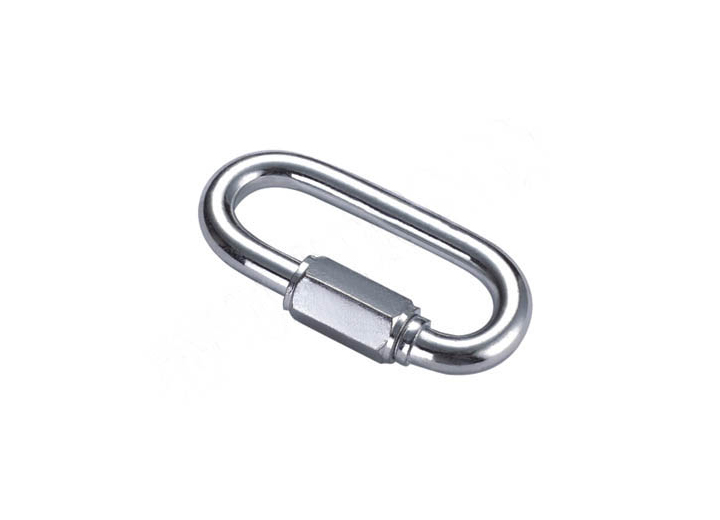

Quick Link, Zinc Plated
Size

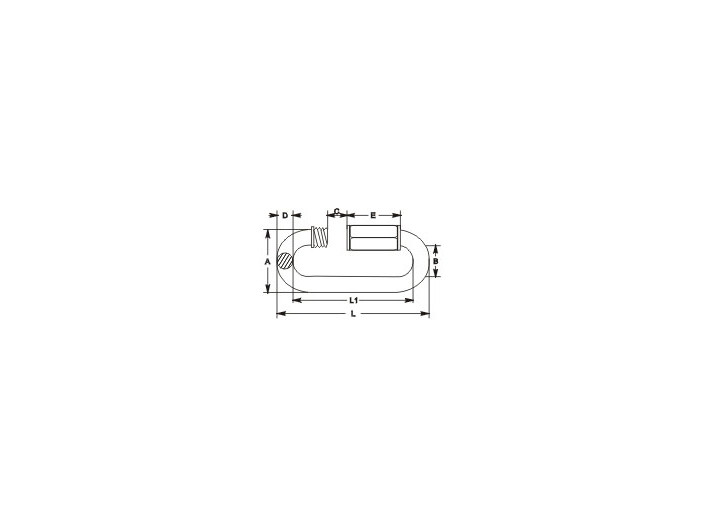

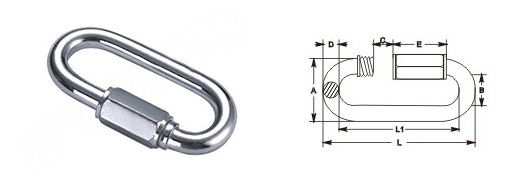

A B C D L L1 E S.W.L
mm
mm
mm
mm
mm
mm
mm mm lbs
3.5 17 10 5 3.5 36 29 11 220 4
19.5 11.5 5.5 4 39.5 31.5 12.5 400 5 23 13 6.5 5 48.5 35.5 16 660 6
26.5 14.5 7.5 6 57 45 19 880 7 30 16 8.5 7 66 52 21.5 1240 8 33.5 17.5 10.5 8 74 58 24 1600 9 37 19 11 9 80 62 26 2200 10 40.5 20.5 12 10 89 69 29 2640 12 47.5 23.5 15 12 104.5 80.5 33 3300 14 54.5 26.5 17 14 121 93 38.5 6100 16 61.5 29.5 19 16 140 108 45 8000
Details
Quick Link, Zinc Plated
|
Size |
A | B | C | D | L | L1 | E |
S.W.L |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm | mm |
lbs |
| 3.5 | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 | 220 |
|
4 |
19.5 | 11.5 | 5.5 | 4 | 39.5 | 31.5 | 12.5 | 400 |
| 5 | 23 | 13 | 6.5 | 5 | 48.5 | 35.5 | 16 | 660 |
|
6 |
26.5 | 14.5 | 7.5 | 6 | 57 | 45 | 19 | 880 |
| 7 | 30 | 16 | 8.5 | 7 | 66 | 52 | 21.5 | 1240 |
| 8 | 33.5 | 17.5 | 10.5 | 8 | 74 | 58 | 24 | 1600 |
| 9 | 37 | 19 | 11 | 9 | 80 | 62 | 26 | 2200 |
| 10 | 40.5 | 20.5 | 12 | 10 | 89 | 69 | 29 | 2640 |
| 12 | 47.5 | 23.5 | 15 | 12 | 104.5 | 80.5 | 33 | 3300 |
| 14 | 54.5 | 26.5 | 17 | 14 | 121 | 93 | 38.5 | 6100 |
| 16 | 61.5 | 29.5 | 19 | 16 | 140 | 108 | 45 | 8000 |
