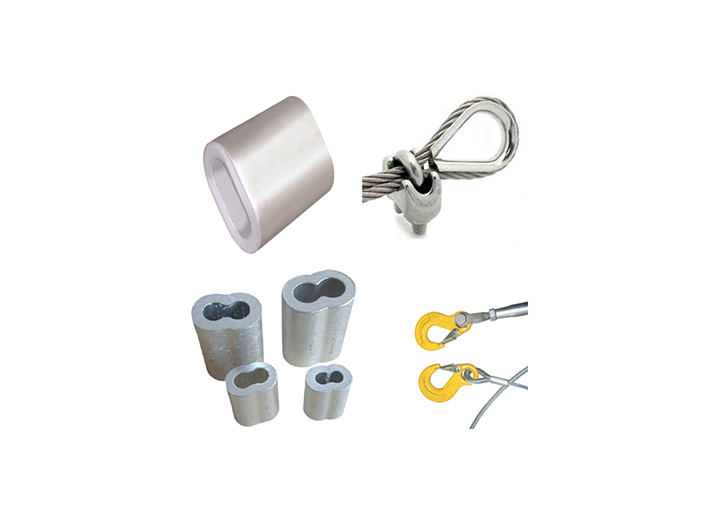

Aluminium Ferrules

Category：Aluminum Sleeves

  • 售后QQ： 点击这里给我发消息
  • 售后QQ： 点击这里给我发消息
Hotline：+86-532-68075169


  • Aluminium Ferrules

    Specification EN13411-3 (DIN3093)

    Ferrule Code
    		 A(mm)
    		 B(mm)
    		 S(mm)
    		 L(mm)
    		 Weight
    		 L'(mm)
    kgs/1000pcs
    		 GB6946-93
    1 1.2 2.4 0.65 5 0.098 —
    1.5 1.7 3.4 0.75 6 0.176 —
    2 2.2 4.4 0.85 7 0.285 —
    2.5 2.7 5.4 1.05 9 0.439 —
    3 3.3 6.6 1.25 11 0.907 —
    3.5 3.8 7.6 1.5 13 1.18 —
    4 4.4 8.8 1.7 14 1.63 —
    4.5 4.9 9.8 1.9 16 2.39 —
    5 5.5 11 2.1 18 3.62 —
    6 6.6 13.2 2.5 21 5.87 25
    6.5 7.2 14.4 2.7 23 7.18 —
    7 7.8 15.6 2.9 25 9.83 30
    8 8.8 17.6 3.3 28 12.96 34
    9 9.9 19.8 3.7 32 18.94 38
    10 10.9 21.8 4.1 35 24.09 42
    11 12.1 24.2 4.5 39 35.35 47
    12 13.2 26.4 4.9 42 44.18 50
    13 14.2 28.4 5.4 46 59.86 55
    14 15.3 30.6 5.8 49 73.5 59
    16 17.5 35 6.7 56 111 67
    18 19.6 39.2 7.6 63 156 76
    20 21.7 43.4 8.4 70 217 84
    22 24.3 48.6 9.2 77 292 92
    24 26.4 52.8 10 84 376 101
    26 28.5 57 10.9 91 481 109
    28 31 62 11.7 98 603 118
    30 33.1 66.2 12.5 105 739 126
    32 35.2 70.4 13.4 112 897 134
    34 37.8 75.6 14.2 119 1077 143
    36 39.8 79.6 15 126 1275 152
    38 41.9 83.8 15.8 133 1503 160
    40 44 88 16.6 140 1734 168
    42 46.2 92.4 17.5 147 2024 —
    44 48.4 96.8 18.3 154 2314 184
    46 50.6 101.2 19.2 161 2662 —
    48 52.8 105.6 20 168 3010 200
    50 55 110 20.8 175 3412 —
    52 57.2 114.4 21.6 182 3813 216
    54 59.4 118.8 22.5 189 4293 —
    56 61.6 123.2 23.3 196 4772 232
    58 63.8 127.6 24.2 203 5326 —
    60 66 132 25 210 5880 248

    Aluminium ferrules are manufactured per EN 13411-3 (DIN3093) from #1 to #60. For safety

    in fabrication and application, our ferrules are made of strictly material corresponding to the

    requirements of EN 13411-3 (DIN3093) regarding material composition and mechanical properties.

Aluminium Ferrules

Wechat consulting

微信扫码咨询
Consult now 返回

Details


Aluminium Ferrules

Specification EN13411-3 (DIN3093)

Ferrule Code
 A(mm)
 B(mm)
 S(mm)
 L(mm)
 Weight
 L'(mm)
kgs/1000pcs
 GB6946-93
1 1.2 2.4 0.65 5 0.098 —
1.5 1.7 3.4 0.75 6 0.176 —
2 2.2 4.4 0.85 7 0.285 —
2.5 2.7 5.4 1.05 9 0.439 —
3 3.3 6.6 1.25 11 0.907 —
3.5 3.8 7.6 1.5 13 1.18 —
4 4.4 8.8 1.7 14 1.63 —
4.5 4.9 9.8 1.9 16 2.39 —
5 5.5 11 2.1 18 3.62 —
6 6.6 13.2 2.5 21 5.87 25
6.5 7.2 14.4 2.7 23 7.18 —
7 7.8 15.6 2.9 25 9.83 30
8 8.8 17.6 3.3 28 12.96 34
9 9.9 19.8 3.7 32 18.94 38
10 10.9 21.8 4.1 35 24.09 42
11 12.1 24.2 4.5 39 35.35 47
12 13.2 26.4 4.9 42 44.18 50
13 14.2 28.4 5.4 46 59.86 55
14 15.3 30.6 5.8 49 73.5 59
16 17.5 35 6.7 56 111 67
18 19.6 39.2 7.6 63 156 76
20 21.7 43.4 8.4 70 217 84
22 24.3 48.6 9.2 77 292 92
24 26.4 52.8 10 84 376 101
26 28.5 57 10.9 91 481 109
28 31 62 11.7 98 603 118
30 33.1 66.2 12.5 105 739 126
32 35.2 70.4 13.4 112 897 134
34 37.8 75.6 14.2 119 1077 143
36 39.8 79.6 15 126 1275 152
38 41.9 83.8 15.8 133 1503 160
40 44 88 16.6 140 1734 168
42 46.2 92.4 17.5 147 2024 —
44 48.4 96.8 18.3 154 2314 184
46 50.6 101.2 19.2 161 2662 —
48 52.8 105.6 20 168 3010 200
50 55 110 20.8 175 3412 —
52 57.2 114.4 21.6 182 3813 216
54 59.4 118.8 22.5 189 4293 —
56 61.6 123.2 23.3 196 4772 232
58 63.8 127.6 24.2 203 5326 —
60 66 132 25 210 5880 248

Aluminium ferrules are manufactured per EN 13411-3 (DIN3093) from #1 to #60. For safety

in fabrication and application, our ferrules are made of strictly material corresponding to the

requirements of EN 13411-3 (DIN3093) regarding material composition and mechanical properties.
