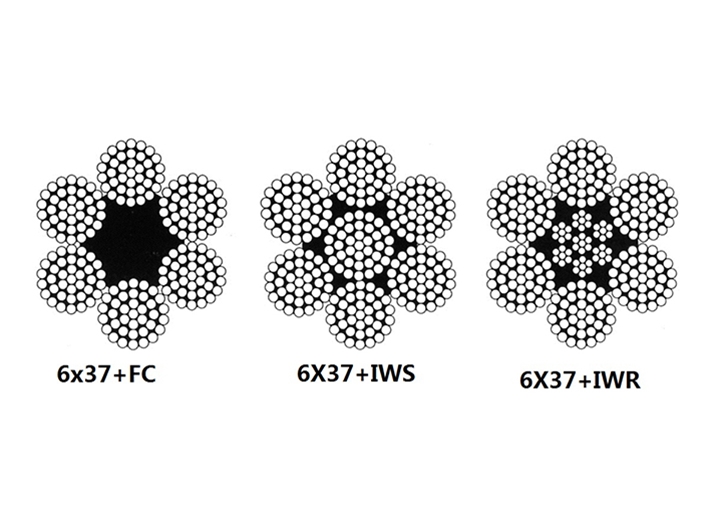

6X37+ FC, IWS, IWR
Category：Stainless Steel Wire Rope
- 售后QQ：
- 售后QQ：
Hotline：+86-532-68075169
6X37+FC,7X37
DIA.
Weight
Tensile Strength
Min. Breaking Strength
mm
kg/100m
( N/mm² )
kN
FC
IWS
FC
IWS
4 5.8 6.6 1770 8.4 9.8 6 13.1 14.8 1770 18.8 23.5 8 23.4 26.2 1770 33 39 10 36.5 41 1570 46.3 54 12 52.6 59 1570 67 78 16 93.4 105 1570 119 139 18 118.3 132.8 1570 150 175 20
146 164 1570 185 217 22
176.7 198.4 1470 196 230 24 210.2 236.2 1270 216 253 26
246.7 277.2 1270 254 300 28
286.2 321.4 1070 248 290 30 328.5 369 1070 285 333 32
373.8 419.8 1070 325 379 36 473 531.4 1070 410 480
Details
6X37+FC,7X37
|
DIA. |
Weight |
Tensile Strength |
Min. Breaking Strength |
||
|
mm |
kg/100m |
( N/mm² ) |
kN |
||
|
FC |
IWS |
FC |
IWS |
||
| 4 | 5.8 | 6.6 | 1770 | 8.4 | 9.8 |
| 6 | 13.1 | 14.8 | 1770 | 18.8 | 23.5 |
| 8 | 23.4 | 26.2 | 1770 | 33 | 39 |
| 10 | 36.5 | 41 | 1570 | 46.3 | 54 |
| 12 | 52.6 | 59 | 1570 | 67 | 78 |
| 16 | 93.4 | 105 | 1570 | 119 | 139 |
| 18 | 118.3 | 132.8 | 1570 | 150 | 175 |
|
20 |
146 | 164 | 1570 | 185 | 217 |
|
22 |
176.7 | 198.4 | 1470 | 196 | 230 |
| 24 | 210.2 | 236.2 | 1270 | 216 | 253 |
|
26 |
246.7 | 277.2 | 1270 | 254 | 300 |
|
28 |
286.2 | 321.4 | 1070 | 248 | 290 |
| 30 | 328.5 | 369 | 1070 | 285 | 333 |
|
32 |
373.8 | 419.8 | 1070 | 325 | 379 |
| 36 | 473 | 531.4 | 1070 | 410 | 480 |
