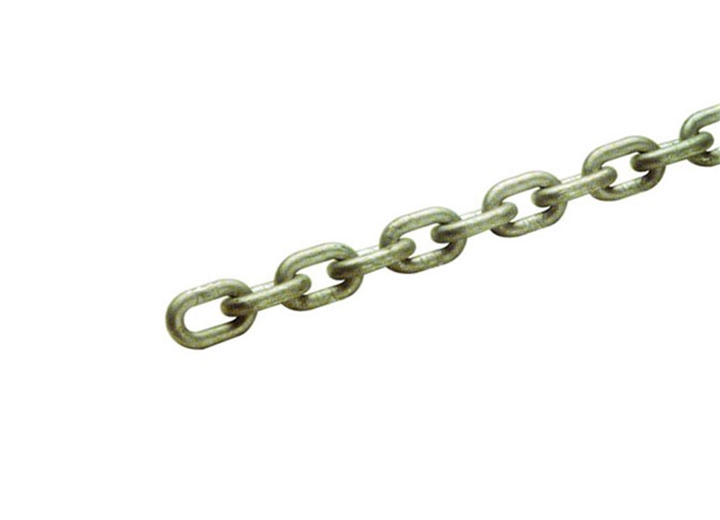

DIN766 Standard Link Chain

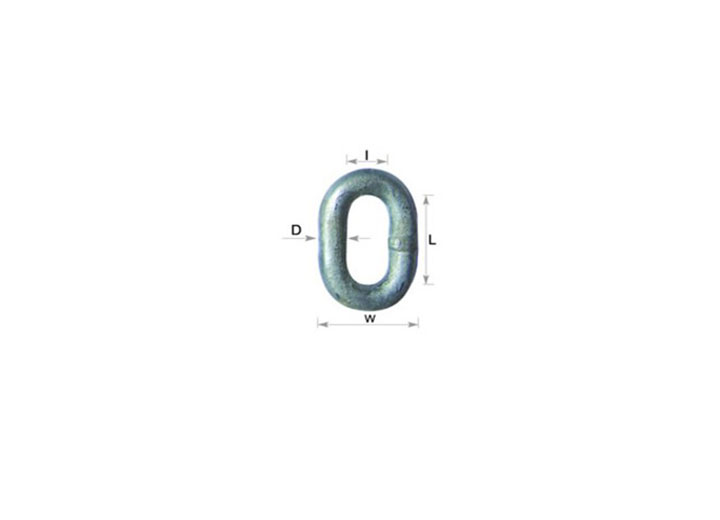

D |
L |
I |
|
DIA |
INSIDE LENGTH |
INSIDE WIDTH |
WEIGHT/Meter |
mm |
mm |
mm |
kgs |
2 |
12 | 3.5 | 0.07 |
3 |
16 | 5 | 0.163 |
4 |
16 | 5 | 0.32 |
5 | 18.5 | 6 | 0.50 |
6 |
18.5 | 7.2 | 0.80 |
7 |
22 | 8.4 | 1.10 |
8 |
24 | 9.6 | 1.40 |
9 | 27 | 10.8 | 1.80 |
10 |
28 | 12 | 2.30 |
11 |
31 | 13.2 | 2.68 |
12 | 36 | 14.6 | 3.11 |
13 | 36 | 15.6 | 3.80 |
16 | 45 | 19.2 | 5.70 |
Details
DIN766 Standard Link Chain
D |
L |
I |
|
DIA |
INSIDE LENGTH |
INSIDE WIDTH |
WEIGHT/Meter |
mm |
mm |
mm |
kgs |
2 |
12 | 3.5 | 0.07 |
3 |
16 | 5 | 0.163 |
4 |
16 | 5 | 0.32 |
5 | 18.5 | 6 | 0.50 |
6 |
18.5 | 7.2 | 0.80 |
7 |
22 | 8.4 | 1.10 |
8 |
24 | 9.6 | 1.40 |
9 | 27 | 10.8 | 1.80 |
10 |
28 | 12 | 2.30 |
11 |
31 | 13.2 | 2.68 |
12 | 36 | 14.6 | 3.11 |
13 | 36 | 15.6 | 3.80 |
16 | 45 | 19.2 | 5.70 |
