Ordinary Mild Steel Link Chain

Category：Steel Chain

  • 售后QQ： 点击这里给我发消息
  • 售后QQ： 点击这里给我发消息
Hotline：+86-532-68075169

  • Short Link Chain

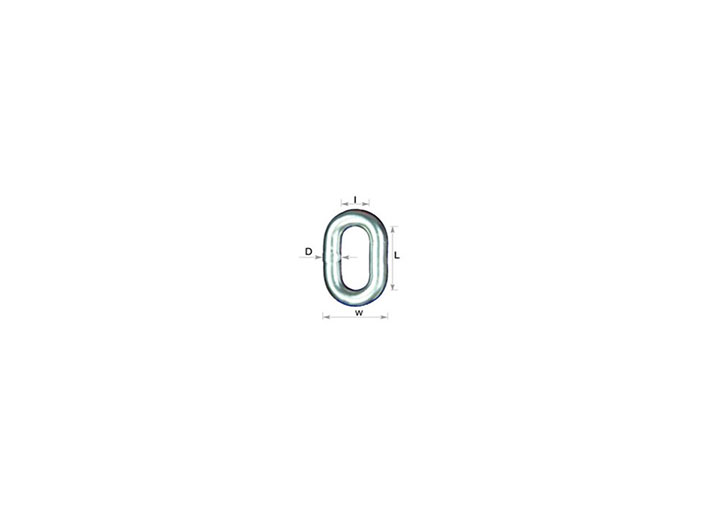

    Size
         		Inside Length (L)
         		Outside Width
         		Test Load
         		Breaking Strength
         		kg/200ft
    mm
         		inch
         		mm
         		mm
         		kg
         		kg
         		Self Color
         		H.D.G
    3.20 1/8 16 12 200 400 11.4 11.74
    4.00 5/32 18.5 14.5 300 600 18.6 19
    4.70 3/16 19 17 400 800 26.2 27
    5.50 7/32 20 19 550 1100 36.8 38
    6.35 1/4 22 21 750 1500 50 51.5
    7.94 5/16 26.5 27.3 1200 2400 80 82.4
    9.50 3/8 30 32 1700 3400 122 125.7
    11.11 7/16 34 36 2300 4600 164 169
    12.70
         		1/2 39 43 3000 6000 210 216
    15.80
         		5/8 45 53 4700 9400 334 344
    19.00
         		3/4 55 63 6800 13600 485 499
    22.20
         		7/8 64 74 9250 18500 656 675
    25.40 1 73 84 12150 24300 870 896



    Medium Link

    Size
    		 Inside Length (L)
    		 Outside Width
    		 Test Load
    		 Breaking Strength
    		 kg/200ft
    mm
    		 inch
    		 mm
    		 mm
    		 kg
    		 kg
    		 Self Color
    		 H.D.G
    3.20 1/8 20 12 200 400 10.8 11
    4.00 5/32 23 15 300 600 17.4 18
    4.70 3/16 25 18 400 800 24.4 25
    5.50 7/32 26 19 550 1100 34 35
    6.35 1/4 26 23 750 1500 48.8 50
    7.94 5/16 32 29 1200 2400 76 78
    9.50 3/8 35 35 1700 3400 111 114
    11.11 7/16 38 38 2300 4600 154 158
    12.70
    		 1/2 50 46 3000 6000 194 200
    15.80
    		 5/8 60 57 4700 9400 303 312
    19.00
    		 3/4 76 69 6800 13600 432 445
    22.20
    		 7/8 90 80 9250 18500 586 603
    25.40 1 105 95 12150 24300 770 792


    Long Link

    Size
    		 Inside Length (L)
    		 Outside Width
    		 Test Load
    		 Breaking Strength
    		 kg/200ft
    mm
    		 inch
    		 mm
    		 mm
    		 kg
    		 kg
    		 Self Color
    		 H.D.G
    3.20 1/8 23 12 200 400 10.4 10.7
    4.00 5/32 27 15 300 600 16.6 17.5
    4.70 3/16 31 17 400 800 22.4 23.3
    5.50 7/32 32 19 550 1100 32 33
    6.35 1/4 33 21 750 1500 43.5 44.8
    7.94 5/16 48 31 1200 2400 68 70
    9.50 3/8 60 37 1700 3400 96 99
    11.11 7/16 71 41 2300 4600 126 129
    12.70
    		 1/2 85 48.5 3000 6000 167 172
    15.80
    		 5/8 114 61.5 4700 9400 256 264
    19.00
    		 3/4 125 75 6800 13600 381 392
    22.20
    		 7/8 140 88 9250 18500 527 543
    25.40 1 155 100 12150 24300 696 716

Ordinary Mild Steel Link Chain

Wechat consulting

微信扫码咨询
Consult now 返回

Details

Short Link Chain

Size
Inside Length (L)
 Outside Width
 		Test Load
 		Breaking Strength
 		kg/200ft
mm
 		inch
 		mm
 		mm
 		kg
 		kg
 		Self Color
 		H.D.G
3.20 1/8 16 12 200 400 11.4 11.74
4.00 5/32 18.5 14.5 300 600 18.6 19
4.70 3/16 19 17 400 800 26.2 27
5.50 7/32 20 19 550 1100 36.8 38
6.35 1/4 22 21 750 1500 50 51.5
7.94 5/16 26.5 27.3 1200 2400 80 82.4
9.50 3/8 30 32 1700 3400 122 125.7
11.11 7/16 34 36 2300 4600 164 169
12.70
 		1/2 39 43 3000 6000 210 216
15.80
 		5/8 45 53 4700 9400 334 344
19.00
 		3/4 55 63 6800 13600 485 499
22.20
 		7/8 64 74 9250 18500 656 675
25.40 1 73 84 12150 24300 870 896



Medium Link

Size
Inside Length (L)
 Outside Width
 Test Load
 Breaking Strength
 kg/200ft
mm
 inch
 mm
 mm
 kg
 kg
 Self Color
 H.D.G
3.20 1/8 20 12 200 400 10.8 11
4.00 5/32 23 15 300 600 17.4 18
4.70 3/16 25 18 400 800 24.4 25
5.50 7/32 26 19 550 1100 34 35
6.35 1/4 26 23 750 1500 48.8 50
7.94 5/16 32 29 1200 2400 76 78
9.50 3/8 35 35 1700 3400 111 114
11.11 7/16 38 38 2300 4600 154 158
12.70
 1/2 50 46 3000 6000 194 200
15.80
 5/8 60 57 4700 9400 303 312
19.00
 3/4 76 69 6800 13600 432 445
22.20
 7/8 90 80 9250 18500 586 603
25.40 1 105 95 12150 24300 770 792



Long Link

Size
 Inside Length (L)
 Outside Width
 Test Load
 Breaking Strength
 kg/200ft
mm
 inch
 mm
 mm
 kg
 kg
 Self Color
 H.D.G
3.20 1/8 23 12 200 400 10.4 10.7
4.00 5/32 27 15 300 600 16.6 17.5
4.70 3/16 31 17 400 800 22.4 23.3
5.50 7/32 32 19 550 1100 32 33
6.35 1/4 33 21 750 1500 43.5 44.8
7.94 5/16 48 31 1200 2400 68 70
9.50 3/8 60 37 1700 3400 96 99
11.11 7/16 71 41 2300 4600 126 129
12.70
 1/2 85 48.5 3000 6000 167 172
15.80
 5/8 114 61.5 4700 9400 256 264
19.00
 3/4 125 75 6800 13600 381 392
22.20
 7/8 140 88 9250 18500 527 543
25.40 1 155 100 12150 24300 696 716
