6×7 or 6×9 Steel Wire Rope(Ungalvanized and Galvanized)

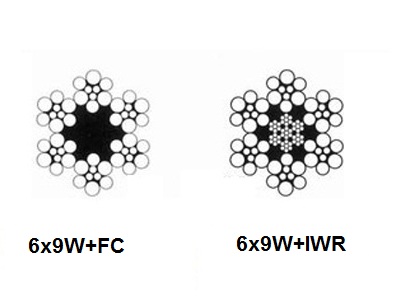

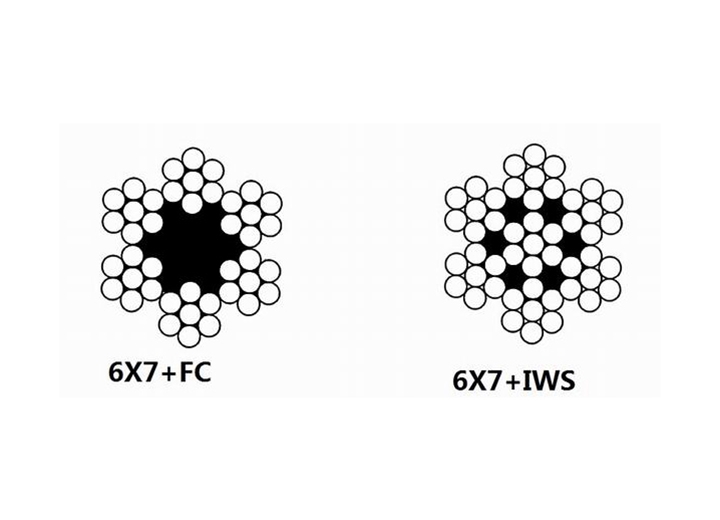

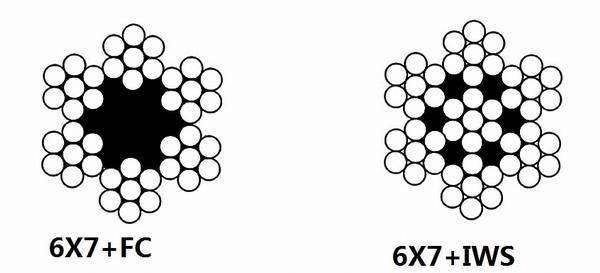

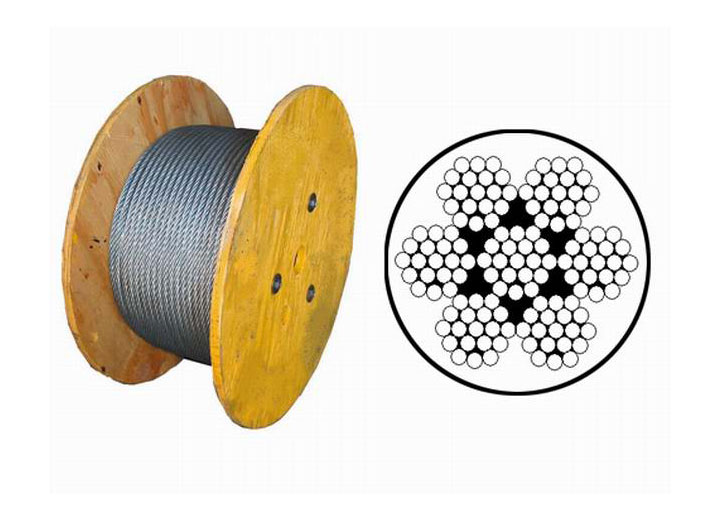

(Construction):6×7+FC 6×7+IWS 6×9W+FC 6×9W+IWR(Ungalvanized and Galvanized)
Nominal Diameter |
Approx.Weight |
Nominal Tensile Strength of Rope(Mpa) |
|||||||||||
1570 |
1670 | 1770 | 1870 | 1960 | |||||||||
Minimun Breaking Load of Rope |
|||||||||||||
D | NF | SF |
IWR/IWS |
FC |
IWR/IWS |
FC |
IWR/IWS |
FC |
IWR/IWS |
FC |
IWR/IWS |
FC |
IWR/IWS |
mm |
kg/100m |
(KN) |
|||||||||||
2 | 1.4 | 1.38 | 1.55 | 2.08 | 2.25 | 2.22 | 2.4 | 2.35 | 2.54 | 2.48 | 2.69 | 2.6 | 2.81 |
3 | 3.16 | 3.10 | 3.48 | 4.69 | 5.07 | 4.99 | 5.4 | 5.29 | 5.72 | 5.59 | 6.04 | 5.86 | 6.33 |
4 | 5.62 | 5.5 | 6.19 | 8.34 | 9.02 | 8.87 | 9.59 | 9.4 | 10.2 | 9.93 | 10.7 | 10.4 | 11.3 |
5 | 8.87 | 8.60 | 9.68 | 13 | 14.1 | 13.9 | 15 | 14.7 | 15.9 | 15.5 | 16.8 | 16.3 | 17.6 |
6 | 12.6 | 12.4 | 13.9 | 18.8 | 20.3 | 20 | 21.6 | 21.2 | 22.9 | 22.4 | 24.2 | 23.4 | 25.3 |
7 | 17.2 | 16.9 | 19 | 25.5 | 27.6 | 27.2 | 29.4 | 28.8 | 31.1 | 30.4 | 32.9 | 31.9 | 34.5 |
8 | 22.5 | 22.0 | 24.8 | 33.4 | 36.1 | 35.5 | 38.4 | 37.6 | 40.7 | 39.7 | 43 | 41.7 | 45 |
9 | 28.4 | 27.9 | 31.3 | 42.2 | 45.7 | 44.9 | 48.6 | 47.6 | 51.5 | 50.3 | 54.4 | 52.7 | 57 |
10 |
35.1 | 34.4 | 38.7 | 52.1 | 56.4 | 55.4 | 60 | 58.8 | 63.5 | 62.1 | 67.1 | 65.1 | 70.4 |
11 |
42.5 | 41.6 | 46.8 | 63.1 | 68.2 | 67.1 | 72.5 | 71.1 | 76.9 | 75.1 | 81.2 | 78.7 | 85.1 |
12 |
50.5 | 49.5 | 55.7 | 75.1 | 81.2 | 79.8 | 86.3 | 84.6 | 91.5 | 89.4 | 96.7 | 93.7 | 101 |
13 |
59.3 | 58.1 | 65.4 | 88.1 | 95.3 | 93.7 | 101 | 99.3 | 107 | 105 | 113 | 110 | 119 |
14 |
68.8 | 67.4 | 75.9 | 102 | 110 | 109 | 118 | 115 | 125 | 122 | 132 | 128 | 138 |
16 | 89.9 | 88.1 | 99.1 | 133 | 144 | 142 | 153 | 150 | 163 | 159 | 172 | 167 | 180 |
17 |
101 | 99.4 | 112 | 151 | 163 | 160 | 173 | 170 | 184 | 179 | 194 | 188 | 203 |
18 |
114 | 114 | 125 | 169 | 183 | 180 | 194 | 190 | 206 | 201 | 218 | 211 | 228 |
20 |
140 | 138 | 155 | 209 | 225 | 222 | 240 | 235 | 254 | 248 | 269 | 260 | 281 |
22 | 170 | 167 | 187 | 252 | 273 | 268 | 290 | 284 | 308 | 300 | 325 | 315 | 341 |
24 |
202 | 198 | 223 | 300 | 325 | 319 | 345 | 338 | 366 | 358 | 387 | 375 | 405 |
26 |
237 | 233 | 262 | 352 | 381 | 375 | 405 | 397 | 430 | 420 | 454 | 440 | 476 |
28 | 275 | 270 | 303 | 409 | 442 | 435 | 470 | 461 | 498 | 487 | 526 | 510 | 552 |
30 |
316 | 310 | 348 | 469 | 507 | 499 | 540 | 529 | 572 | 559 | 604 | 586 | 633 |
32 | 359 | 352 | 396 | 534 | 577 | 568 | 614 | 602 | 651 | 636 | 687 | 666 | 721 |
34 |
406 | 398 | 447 | 603 | 652 | 641 | 693 | 679 | 735 | 718 | 776 | 752 | 813 |
36 |
455 | 446 | 502 | 676 | 730 | 719 | 777 | 762 | 824 | 805 | 870 | 843 | 912 |
38 | 507 | 497 | 559 | 753 | 814 | 801 | 866 | 849 | 918 | 896 | 969 | 940 | 1020 |
40 |
562 | 550 | 619 | 834 | 902 | 887 | 959 | 940 | 1020 | 993 | 1070 | 1040 | 1130 |
42 | 619 | 607 | 683 | 919 | 994 | 978 | 1060 | 1040 | 1120 | 1110 | 1180 | 1150 | 1240 |
44 |
680 | 666 | 749 | 1010 | 1090 | 1070 | 1160 | 1140 | 1230 | 1200 | 1300 | 1260 | 1360 |
46 | 743 | 728 | 819 | 1100 | 1190 | 1170 | 1270 | 1240 | 1340 | 1310 | 1420 | 1380 | 1490 |
48 |
809 | 793 | 892 | 1200 | 1300 | 1280 | 1380 | 1350 | 1460 | 1430 | 1550 | 1500 | 1620 |
50 |
878 | 860 | 968 | 1300 | 1410 | 1390 | 1500 | 1470 | 1590 | 1550 | 1680 | 1630 | 1760 |
Main Applications:Various cable carriage,rope and belt conveyer,ropeway drawing,slope winch,etc.
