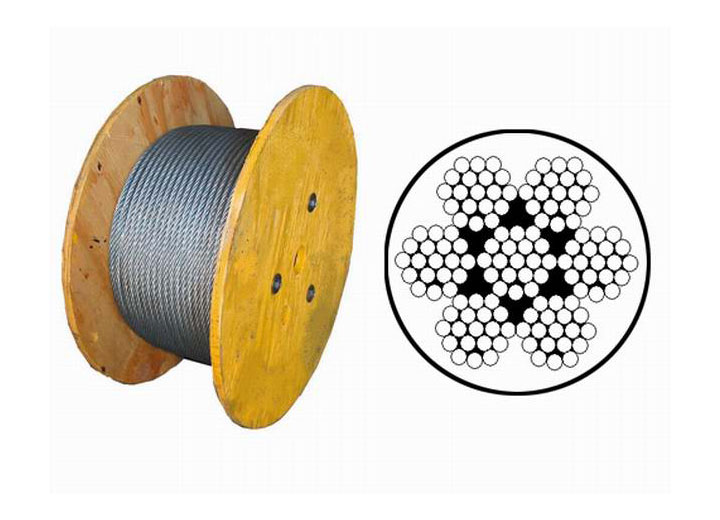

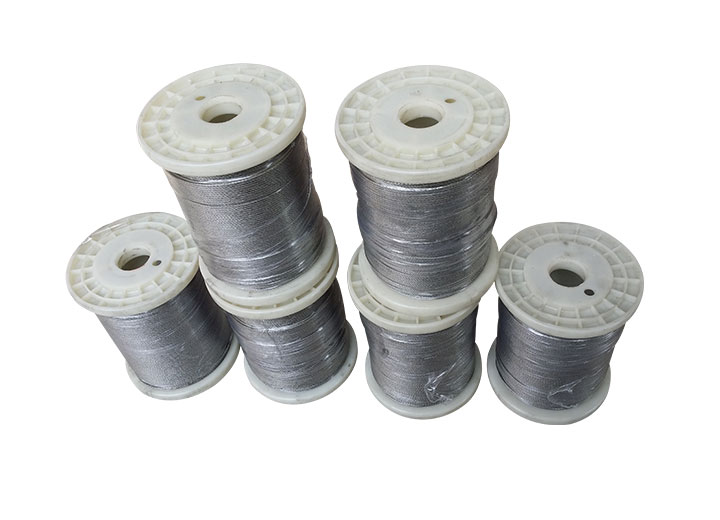

6×19 Steel Wire Rope

Category：Steel Wire Rope

  • 售后QQ： 点击这里给我发消息
  • 售后QQ： 点击这里给我发消息
Hotline：+86-532-68075169

  • 6×19 Steel Wire Rope（Ungalvanized and Galvanized)

    （Construction）：6×19+FC 6×19+IWS 6×19W+IWR

    Nominal Diameter
         		Approx.Weight
         		Nominal Tensile Strength of Rope(Mpa)
    1570
         		1670 1770 1870 1960
    Minimun Breaking Load of Rope
    D NF SF IWR/IWS
         		FC
         		IWR/IWS
         		FC IWR/IWS
         		FC IWR/IWS
         		FC IWR/IWS
         		FC IWR/IWS
    mm kg/100m
         		(KN)
    3 3.16 3.1 3.6 4.34 4.69 4.61 4.99 4.89 5.29 5.17 5.59 5.42 5.86
    4 5.62 5.5 6.4 7.71 8.34 8.2 8.87 8.69 9.4 9.19 9.93 9.63 10.4
    5 8.78 8.6 10 12

    13

    		12.8 13.9 13.6 14.7 14.4 15.5 15 16.3
    6 12.6 12.4 14.4 17.4 18.8 18.5 20 19.6 21.2 20.7 22.4 21.7 23.4
    7 17.2 16.9 19.6 23.6 25.5 25.1 27.2 26.6 28.8 28.1 30.4 29.5 31.9
    8 22.5 22 25.6 30.8 33.4 32.8 35.5 34.8 37.6 36.7 39.7 38.5 41.7
    9 28.4 27.9 32.4 39 42.2 41.5 44.9 44 47.6 46.5 50.3 48.7 52.7
    10 35.1 34.4 40 48.2 52.1 51.3 55.4 54.3 58.8 57.4 62.1 60.2 65.1
    11
         		42.5 41.6 48.4 58.3 63.1 62 67.1 65.8 71.1 69.5 75.1 72.8 78.7
    12
         		50.5 49.5 57.6 69.4 75.1 73.8 79.8 78.2 84.6 82.7 89.4 86.7 93.7
    13
         		59.3 58.1 67.6 81.5 88.1 86.6 93.7 91.8 99.3 97 105 102 110
    14
         		68.8 67.4 78.4 94.5 102 101 109 107 115 113 122 118 128
    15 79 77.4 90 108 117 115 125 122 132 129 140 135 146
    16 89.9 88.1 102 123 133 131 142 139 150 147 159 154 167
    17
         		101 99.4 116 139 151 148 160 157 170 166 179 174 188
    18
         		114 111 130 156 169 166 180 176 190 186 201 195 211
    20
         		140 138 160 193 209 205 222 217 235 230 248 241 260
    22 170 167 194 233 252 248 268 263 284 278 301 291 315
    24
         		202 198 230 278 300 295 319 313 339 331 358 347 375
    26
         		237 233 270 326 352 347 375 367 397 388 420 407 440
    28 275 270 314 378 409 402 435 426 461 450 487 472 510
    30
         		316 310 360 434 469 461 499 489 529 517 559 542 586
    32 359 352 410 494 534 525 568 556 602 588 636 616 666
    34
         		406 398 462 557 603 593 641 628 679 664 718 696 752
    36
         		455 446 518 625 676 664 719 704 762 744 805 780 843
    38 507 497 578 696 753 740 801 785 849 829 897 869 940
    40
         		562 550 640 771 834 820 887 869 940 919 993 963 1040
    42 619 607 706 850 920 904 978 959 1040 1010 1100 1060 1150
    44
         		680 666 774 933 1010 993 1070 1050 1140 1110 1200 1160 1260
    46 743 728 846 1020 1100 1080 1170 1150 1240 1210 1310 1270 1380
    48
         		809 793 922 1110 1200 1180 1280 1250 1350 1320 1430 1390 1500
    50
         		878 860 1000 1210 1300 1280 1390 1360 1470 1440 1550 1500 1630
    52
         		949 930 1080 1300 1410 1390 1500 1470 1590 1550 1680 1630 1760
    54 1024 1000 1170 1410 1520 1500 1620 1580 1710 1670 1810 1750 1900
    56 1100 1080 1250 1510 1630 1610 1740 1700 1840 1800 1950 1890 2040
    58 1180 1160 1350 1620 1750 1720 1870 1830 1980 1930 2090 2020 2190
    60 1260 1240 1440 1740 1880 1850 2000 1960 2120 2070 2240 2170 2340
    62 1350 1320 1540 1850 2000 1970 2130 2090 2260 2210 2390 2310 2500
    64 1440 1410 1640 1970 2140 2100 2270 2230 2410 2350 2540 2460 2670
    66 1530 1500 1740 2100 2270 2230 2420 2370 2560 2500 2700 2620

    2830

    68 1620 1590 1850 2230 2410 2370 2560 2510 2720 2650 2870 2780 3010
    70 1720 1690 1960 2360 2550 2510 2720 2660 2880 2810 3040 2950 3190
    72 1820 1780 2070 2500 2700 2660 2870 2820 3050 2980 3220 3120 3370
    74 1920 1880 2190 2640 2850 2810 3040 2980 3220 3140 3400 3300 3560
    76 2030 1990 2310 2780 3010 2960 3200 3140 3390 3320 3590 3480 3760
    78 2140 2090 2430 2930 3170 3120 3370 3310 3580 3490 3780 3660 3960
    80 2250 2220 2560 3080 3340 3280 3550 3480 3760 3670 3970 3850 4160

    Main Applications:Various equipment for hoisting,derricking,lifting and drawing.

6×19 Steel Wire Rope

Wechat consulting

微信扫码咨询
Consult now 返回

Details

6×19 Steel Wire Rope（Ungalvanized and Galvanized)

（Construction）：6×19+FC 6×19+IWS 6×19W+IWR

Nominal Diameter
 		Approx.Weight
 		Nominal Tensile Strength of Rope(Mpa)
1570
 		1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS
 		FC
 		IWR/IWS
 		FC IWR/IWS
 		FC IWR/IWS
 		FC IWR/IWS
 		FC IWR/IWS
mm kg/100m
 		(KN)
3 3.16 3.1 3.6 4.34 4.69 4.61 4.99 4.89 5.29 5.17 5.59 5.42 5.86
4 5.62 5.5 6.4 7.71 8.34 8.2 8.87 8.69 9.4 9.19 9.93 9.63 10.4
5 8.78 8.6 10 12

13

12.8 13.9 13.6 14.7 14.4 15.5 15 16.3
6 12.6 12.4 14.4 17.4 18.8 18.5 20 19.6 21.2 20.7 22.4 21.7 23.4
7 17.2 16.9 19.6 23.6 25.5 25.1 27.2 26.6 28.8 28.1 30.4 29.5 31.9
8 22.5 22 25.6 30.8 33.4 32.8 35.5 34.8 37.6 36.7 39.7 38.5 41.7
9 28.4 27.9 32.4 39 42.2 41.5 44.9 44 47.6 46.5 50.3 48.7 52.7
10 35.1 34.4 40 48.2 52.1 51.3 55.4 54.3 58.8 57.4 62.1 60.2 65.1
11
 		42.5 41.6 48.4 58.3 63.1 62 67.1 65.8 71.1 69.5 75.1 72.8 78.7
12
 		50.5 49.5 57.6 69.4 75.1 73.8 79.8 78.2 84.6 82.7 89.4 86.7 93.7
13
 		59.3 58.1 67.6 81.5 88.1 86.6 93.7 91.8 99.3 97 105 102 110
14
 		68.8 67.4 78.4 94.5 102 101 109 107 115 113 122 118 128
15 79 77.4 90 108 117 115 125 122 132 129 140 135 146
16 89.9 88.1 102 123 133 131 142 139 150 147 159 154 167
17
 		101 99.4 116 139 151 148 160 157 170 166 179 174 188
18
 		114 111 130 156 169 166 180 176 190 186 201 195 211
20
 		140 138 160 193 209 205 222 217 235 230 248 241 260
22 170 167 194 233 252 248 268 263 284 278 301 291 315
24
 		202 198 230 278 300 295 319 313 339 331 358 347 375
26
 		237 233 270 326 352 347 375 367 397 388 420 407 440
28 275 270 314 378 409 402 435 426 461 450 487 472 510
30
 		316 310 360 434 469 461 499 489 529 517 559 542 586
32 359 352 410 494 534 525 568 556 602 588 636 616 666
34
 		406 398 462 557 603 593 641 628 679 664 718 696 752
36
 		455 446 518 625 676 664 719 704 762 744 805 780 843
38 507 497 578 696 753 740 801 785 849 829 897 869 940
40
 		562 550 640 771 834 820 887 869 940 919 993 963 1040
42 619 607 706 850 920 904 978 959 1040 1010 1100 1060 1150
44
 		680 666 774 933 1010 993 1070 1050 1140 1110 1200 1160 1260
46 743 728 846 1020 1100 1080 1170 1150 1240 1210 1310 1270 1380
48
 		809 793 922 1110 1200 1180 1280 1250 1350 1320 1430 1390 1500
50
 		878 860 1000 1210 1300 1280 1390 1360 1470 1440 1550 1500 1630
52
 		949 930 1080 1300 1410 1390 1500 1470 1590 1550 1680 1630 1760
54 1024 1000 1170 1410 1520 1500 1620 1580 1710 1670 1810 1750 1900
56 1100 1080 1250 1510 1630 1610 1740 1700 1840 1800 1950 1890 2040
58 1180 1160 1350 1620 1750 1720 1870 1830 1980 1930 2090 2020 2190
60 1260 1240 1440 1740 1880 1850 2000 1960 2120 2070 2240 2170 2340
62 1350 1320 1540 1850 2000 1970 2130 2090 2260 2210 2390 2310 2500
64 1440 1410 1640 1970 2140 2100 2270 2230 2410 2350 2540 2460 2670
66 1530 1500 1740 2100 2270 2230 2420 2370 2560 2500 2700 2620

2830

68 1620 1590 1850 2230 2410 2370 2560 2510 2720 2650 2870 2780 3010
70 1720 1690 1960 2360 2550 2510 2720 2660 2880 2810 3040 2950 3190
72 1820 1780 2070 2500 2700 2660 2870 2820 3050 2980 3220 3120 3370
74 1920 1880 2190 2640 2850 2810 3040 2980 3220 3140 3400 3300 3560
76 2030 1990 2310 2780 3010 2960 3200 3140 3390 3320 3590 3480 3760
78 2140 2090 2430 2930 3170 3120 3370 3310 3580 3490 3780 3660 3960
80 2250 2220 2560 3080 3340 3280 3550 3480 3760 3670 3970 3850 4160

Main Applications:Various equipment for hoisting,derricking,lifting and drawing.
