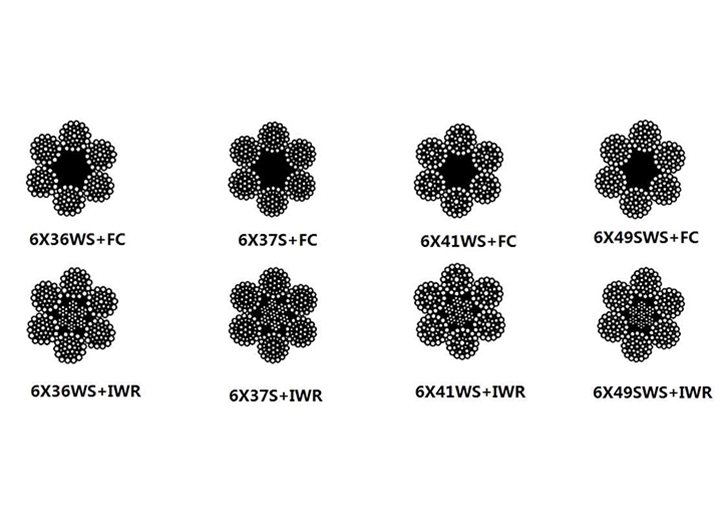

6X36WS, 6X37S, 6X41WS,6X49SWS

Category：Steel Wire Rope

  • 售后QQ： 点击这里给我发消息
  • 售后QQ： 点击这里给我发消息
Hotline：+86-532-68075169

  • 6x25Fi, 6x26WS,6x29Fi,6x31WS,6x36WS,6x37S,6x41WS,6x49SWS

    Line Contacted Wire Rope (Ungalvanized and Galvanized)

    Nominal Diameter
    		 Approx.Weight
    		 Nominal Tensile Strength of Rope(Mpa)
    1570
    		 1670 1770 1870 1960
    Minimun Breaking Load of Rope
    D NF SF IWR/IWS
    		 FC
    		 IWR/IWS
    		 FC IWR/IWS
    		 FC IWR/IWS
    		 FC IWR/IWS
    		 FC IWR/IWS
    mm kg/100m
    		 (KN)
    8 24.3 23.7 26.8 33.2 35.8 35.3 38 37.4 40.3 39.5 42.6 41.4 44.7
    9 30.8 30.1 33.9 42 45.3 44.6 48.2 47.3 51 50 53.9 52.4 56.5
    10 38 37.1 41.8 51.8 55.9 55.1 59.5 58.4 63 61.7 66.6 64.7 69.8
    11 46 44.9 50.6 62.7 67.6 66.7 71.9 70.7 76.2 74.7 80.6 78.3 84.4
    12 54.7 53.4 60.2 74.6 80.5 79.4 85.6 84.1 90.7 88.9 95.9 93.1 100
    14 74.5 72.7 81.9 102 110 108 117 114 124 121 130 127 137
    16 97.3 95 107 133 143 141 152 150 161 158 170 166 179
    18 123 120 135 168 181 179 193 189 204 200 216 210 226
    20 152
    		 148 167 207 224 220 238 234 252 247 266 259 279
    22 184 180 202 251 271 267 288 283 305 299 322 313 338
    24 219 214 241 298 322 317 342 336 363 355 383 373 402
    26 257 251 283 350 378 373 402 395 426 417 450 437 472
    28 298 291 328 406 438 432 466 459 494 484 522 507 547
    30 342 334 376 466 503 496 535 526 567 555 599 582 628
    32 389 380 428 531 572 564 609 598 645 632 682 662 715
    34 439 429 483 599 646 637 687 675 728 713 770 748 807
    36 492 481 542 671 724 714 770 757 817 800 863 838 904
    38 549 536 604 748 807 796 858

    843

    		910 891 961 934 1008
    40 608 594 669 829 894 882 951 935 1010 987 1070 1030 1120
    42 670 654 737 914 986 972 1050 1030 1110 1090 1170 1140 1230
    44 736 718 809 1000 1080 1070 1150 1130 1220 1190 1290 1250 1350
    46 804 785 884 1100 1180 1170 1260 1240 1330 1310 1410 1370 1480
    48 876 855 963 1190 1290 1270 1370 1350 1450 1420 1530 1490 1610
    50 950 928 1050 1300 1400 1380 1490 1460 1580 1540 1660 1620 1740
    52 1030 1000 1130 1400 1510 1490 1610 1580 1700 1670 1800 1750 1890
    54 1110 1080 1220 1510 1630 1610 1730 1700 1840 1800 1940 1890 2030
    56 1190 1160 1310 1620 1750 1730 1860 1830 1980 1940 2090 2030 2190
    58 1280 1250 1410 1740 1880 1850 2000 1960 2120 2080 2240 2180 2350
    60 1730 1340 1500 1870 2010 1980 2140 2100 2270 2220 2400 2330 2510
    62 1460 1430 1610 1990 2150 2120 2290 2250 2420 2370 2560 2490 2680
    64 1560 1520 1710 2120 2290 2260 2440 2390 2580 2530 2730 2650 2860
    66 1660 1620 1820 2260 2430 2400 2590 2540 2740 2690 2900 2820 3040
    68 1760 1720 1930 2400 2580 2550 2750 2700 2910 2850 3080 2990 3230
    70 1860 1820 2050 2540 2740 2700 2910 2860 3090 3020 3260 3170 3420
    72 1970 1920 2170 2690 2900 2860 3080 3030 3270 3200 3450 3350 3620
    74 2080 2030 2290 2840 3060 3020 3260 3200 3450 3380 3650 3540 3820
    76 2190 2140 2410 2990 3230 3180 3430 3370 3640 3560 3850 3740 4030
    78 2310 2260 2540 3150 3400 3350 3620 3550 3830 3750 4050 3940 4250
    80 2430 2370 2680 3320 3580 3530 3800 3740 4030 3950 4260 4140 4470
    85 2750 2680 3020 3740 4040 3980 4300 4220 4550 4460 4810 4670 5040
    90 3080 3010 3390 4200 4530 4460 4820 4730 5100 5000 5390 5240 5650
    95 3430 3350 3770 4680 5040 4970 5370 5270 5690 5570 6010 5840 6300
    100 3800 3710 4180 5180 5590 5510 5950 5840 6300 6170 6660 6470 6980
    105 4190 4090 4610 5170 6160 6080 6550 6440 6950 6800 7340 7130 7690
    110 4600 4490 5060 6270 6760 6670 7190 7070 7620 7470 8060 7830 8440
    115 5030 4910 5530 6850 7390 7290 7860 7720 8330 8160 8800 8550 9230
    120 5470 5340 6020 7460 8050 7940 8560 8410 9070 8890 9590 9310 10000

    Main Applications:Various equipment for derricking,lifting and drawing;The rope with wire core can be used under the shock load,heated and squeezed conditions such as electric shares.

6X36WS, 6X37S, 6X41WS,6X49SWS

Wechat consulting

微信扫码咨询
Consult now 返回

Details

6x25Fi, 6x26WS,6x29Fi,6x31WS,6x36WS,6x37S,6x41WS,6x49SWS

Line Contacted Wire Rope (Ungalvanized and Galvanized)

Nominal Diameter
 Approx.Weight
 Nominal Tensile Strength of Rope(Mpa)
1570
 1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS
 FC
 IWR/IWS
 FC IWR/IWS
 FC IWR/IWS
 FC IWR/IWS
 FC IWR/IWS
mm kg/100m
 (KN)
8 24.3 23.7 26.8 33.2 35.8 35.3 38 37.4 40.3 39.5 42.6 41.4 44.7
9 30.8 30.1 33.9 42 45.3 44.6 48.2 47.3 51 50 53.9 52.4 56.5
10 38 37.1 41.8 51.8 55.9 55.1 59.5 58.4 63 61.7 66.6 64.7 69.8
11 46 44.9 50.6 62.7 67.6 66.7 71.9 70.7 76.2 74.7 80.6 78.3 84.4
12 54.7 53.4 60.2 74.6 80.5 79.4 85.6 84.1 90.7 88.9 95.9 93.1 100
14 74.5 72.7 81.9 102 110 108 117 114 124 121 130 127 137
16 97.3 95 107 133 143 141 152 150 161 158 170 166 179
18 123 120 135 168 181 179 193 189 204 200 216 210 226
20 152
 148 167 207 224 220 238 234 252 247 266 259 279
22 184 180 202 251 271 267 288 283 305 299 322 313 338
24 219 214 241 298 322 317 342 336 363 355 383 373 402
26 257 251 283 350 378 373 402 395 426 417 450 437 472
28 298 291 328 406 438 432 466 459 494 484 522 507 547
30 342 334 376 466 503 496 535 526 567 555 599 582 628
32 389 380 428 531 572 564 609 598 645 632 682 662 715
34 439 429 483 599 646 637 687 675 728 713 770 748 807
36 492 481 542 671 724 714 770 757 817 800 863 838 904
38 549 536 604 748 807 796 858

843

910 891 961 934 1008
40 608 594 669 829 894 882 951 935 1010 987 1070 1030 1120
42 670 654 737 914 986 972 1050 1030 1110 1090 1170 1140 1230
44 736 718 809 1000 1080 1070 1150 1130 1220 1190 1290 1250 1350
46 804 785 884 1100 1180 1170 1260 1240 1330 1310 1410 1370 1480
48 876 855 963 1190 1290 1270 1370 1350 1450 1420 1530 1490 1610
50 950 928 1050 1300 1400 1380 1490 1460 1580 1540 1660 1620 1740
52 1030 1000 1130 1400 1510 1490 1610 1580 1700 1670 1800 1750 1890
54 1110 1080 1220 1510 1630 1610 1730 1700 1840 1800 1940 1890 2030
56 1190 1160 1310 1620 1750 1730 1860 1830 1980 1940 2090 2030 2190
58 1280 1250 1410 1740 1880 1850 2000 1960 2120 2080 2240 2180 2350
60 1730 1340 1500 1870 2010 1980 2140 2100 2270 2220 2400 2330 2510
62 1460 1430 1610 1990 2150 2120 2290 2250 2420 2370 2560 2490 2680
64 1560 1520 1710 2120 2290 2260 2440 2390 2580 2530 2730 2650 2860
66 1660 1620 1820 2260 2430 2400 2590 2540 2740 2690 2900 2820 3040
68 1760 1720 1930 2400 2580 2550 2750 2700 2910 2850 3080 2990 3230
70 1860 1820 2050 2540 2740 2700 2910 2860 3090 3020 3260 3170 3420
72 1970 1920 2170 2690 2900 2860 3080 3030 3270 3200 3450 3350 3620
74 2080 2030 2290 2840 3060 3020 3260 3200 3450 3380 3650 3540 3820
76 2190 2140 2410 2990 3230 3180 3430 3370 3640 3560 3850 3740 4030
78 2310 2260 2540 3150 3400 3350 3620 3550 3830 3750 4050 3940 4250
80 2430 2370 2680 3320 3580 3530 3800 3740 4030 3950 4260 4140 4470
85 2750 2680 3020 3740 4040 3980 4300 4220 4550 4460 4810 4670 5040
90 3080 3010 3390 4200 4530 4460 4820 4730 5100 5000 5390 5240 5650
95 3430 3350 3770 4680 5040 4970 5370 5270 5690 5570 6010 5840 6300
100 3800 3710 4180 5180 5590 5510 5950 5840 6300 6170 6660 6470 6980
105 4190 4090 4610 5170 6160 6080 6550 6440 6950 6800 7340 7130 7690
110 4600 4490 5060 6270 6760 6670 7190 7070 7620 7470 8060 7830 8440
115 5030 4910 5530 6850 7390 7290 7860 7720 8330 8160 8800 8550 9230
120 5470 5340 6020 7460 8050 7940 8560 8410 9070 8890 9590 9310 10000

Main Applications:Various equipment for derricking,lifting and drawing;The rope with wire core can be used under the shock load,heated and squeezed conditions such as electric shares.
