1X7,1X19，1X37 Galvanized Guy Rope For Electric Cable

Category：Steel Wire Rope

Hotline：+86-532-68075169

Galvanized Guy Rope For Electric Cable

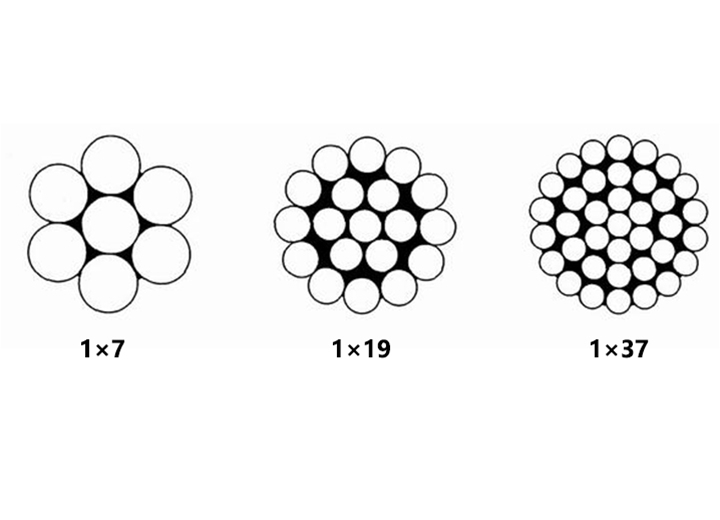

（Construction）：(1×7)(1×19)(1×37)

Construction	Wire Diameter(mm)	Guy Rope Diameter(mm)	Guy Rope Section (mm²)	Tensile Strength of Rope(Mpa)			Weight of Zinc Coat g/m²	Approx. Weight kg/100m
				1370	1470	1570
				Total Breaking Load of Wire-not less than(Kn)
1×7	1.0	3.0	5.5	7.54	8.08	8.64	185	4.37
	1.2	3.6	7.92	10.8	11.6	12.4	185	6.29
	1.4	4.2	10.7	14.7	15.8	16.9	185	8.56
	1.6	4.8	14	19.2	20.6	22	200	11.1
	1.8	5.4	17.8	24.4	26.1	27.9	215	14.1
	2.0	6.0	22	30.1	32.3	34.5	230	17.4
	2.3	6.9	29.1	39.8	42.7	45.6	230	23
	2.6	7.8	37.1	50.9	54.6	58.4	230	29.5
	2.9	8.7	46.2	63.3	67.9	72.6	230	36.7
	3.0	9.6	56.3	77.1	82.7	77.7	230	44.7
	3.5	10.5	67.3	92.2	98.9	105	245	53.4
	3.8	11.4	79.4	108	116	124	260	63
	4.0	12.0	87.9	120	129	138	260	69.9
1×19	1.6	8.0	38.2	52.3	56.1	59.9	200	30.4
	1.8	9.0	48.3	66.2	70	75.9	215	38.4
	2.0	10.0	59.7	81.7	87.7	93.7	230	47.5
	2.3	11.5	78.9	108	116	123	230	62.8
	2.6	13.0	101	138	148	158	230	80.3
	2.9	14.5	125	171	184	197	230	99.9
	3.0	15.0	134	250	197	210	230	106
	3.5	17.5	182	183	268	287	245	145
	3.8	19.0	215	250	316	338	260	171
	4.0	20.0	238	250	350	374	260	190
1×37	1.6	11.2	14	19.2	20.6	22	200	59.7
	1.8	12.6	17.8	24.4	26.1	27.9	215	75.6
	2.0	14.0	22	30.1	32.3	34.5	230	93.3
	2.3	16.1	29.1	39.8	42.7	45.6	230	123
	2.6	18.2	37.1	50.9	54.6	58.3	230	158
	2.9	20.3	46.2	63.3	67.9	72.6	230	196
	3.0	21.0	49.5	67.7	72.7	77.6	230	210
	3.5	24.5	67.3	92.2	99	105	245	286
	3.8	26.6	79.4	108	116	124	260	337
	4.0	28.0	87.9	120	129	138	260	373
	4.2	29.4	97	132	142	152	260	411
	4.4	30.8	106	145	156	167	260	452

Main Applications:Suitable for hanger,hang,communication cable,overhead power line and fixing subject etc.
