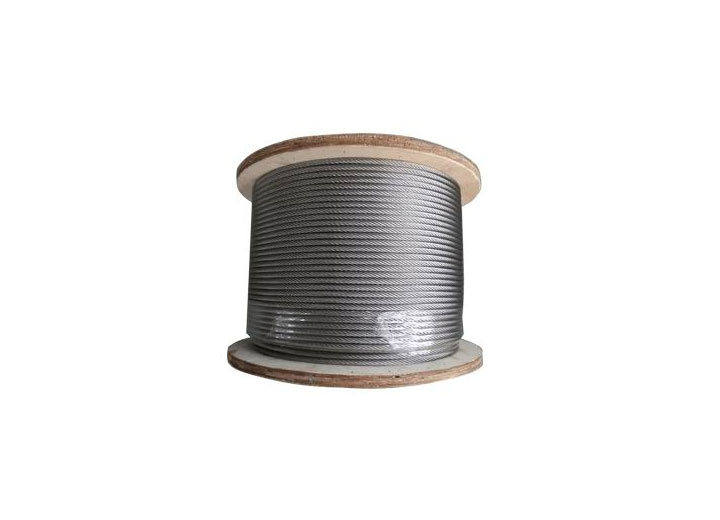

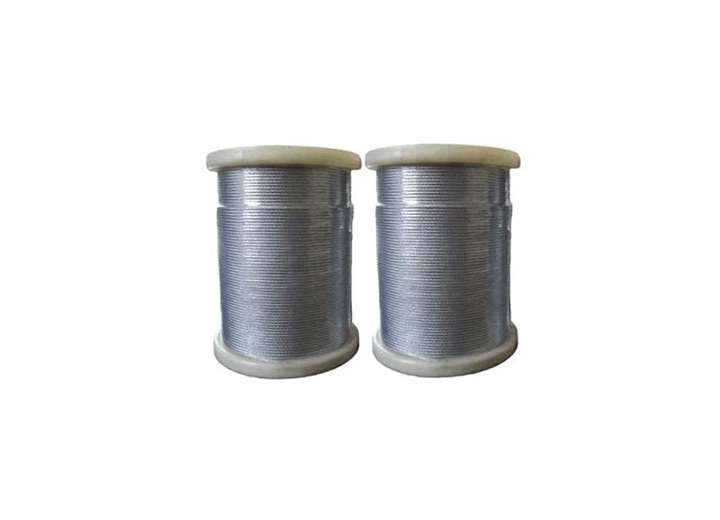

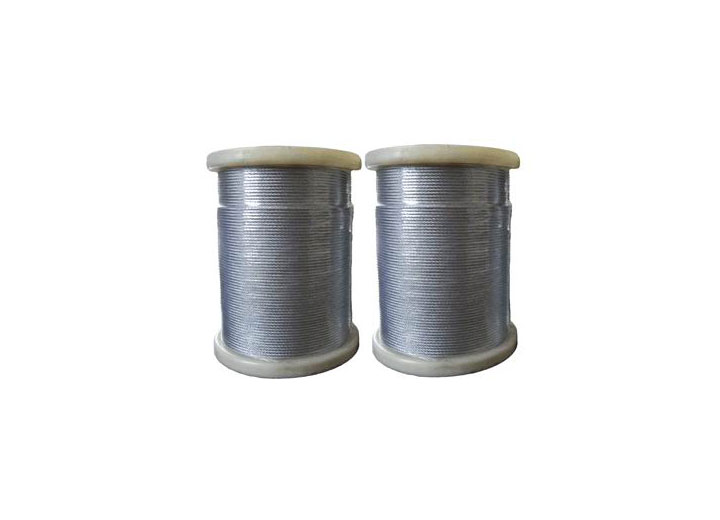

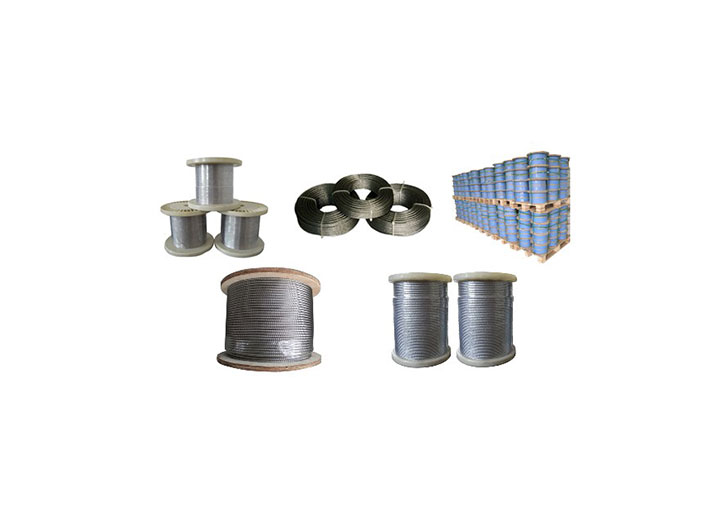

Stainless Steel Wire Rope

Category：wire rope

  • 售后QQ： 点击这里给我发消息
  • 售后QQ： 点击这里给我发消息
Hotline：+86-532-68075169




  • Stainless Steel Wire Rope

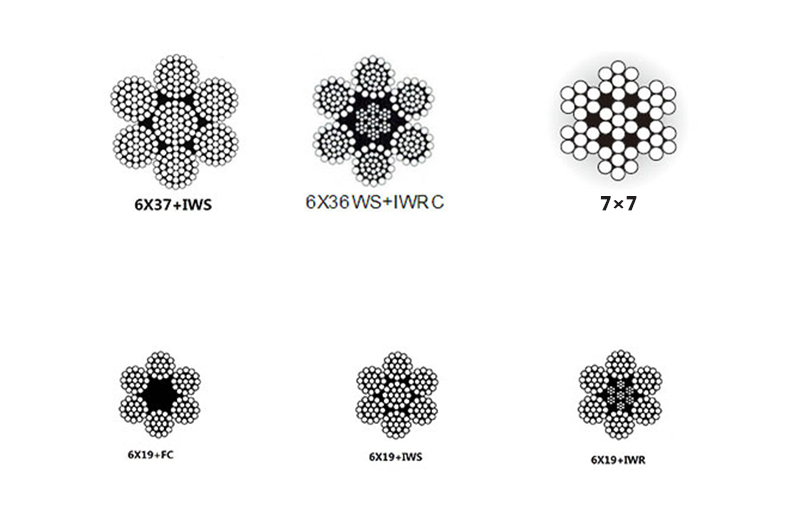

    6x7+FC ,6X7+IWS(7x7)

    DIA.
         		Weight
         		Tensile Strength
         		Min. Breaking Strength
    mm
         		kg/100m
         		( N/mm² )
         		kN
    FC IWS FC IWS
    0.36 — 0.053 1870
         		—
         		0.092
    0.45 —
         		0.083 1870
         		—
         		0.144
    0.5 —
         		0.103 1870
         		—
         		0.178
    0.6
         		—
         		0.148 1870 —
         		0.256
    0.8 —
         		0.262 1870
         		—
         		0.455
    1 —
         		0.41
         		1770 —
         		0.672
    1.2 —
         		0.583
         		1770 —
         		0.968
    1.5 0.81 0.92 1770 —
         		2.18
    1.8 1.17 1.33 1770
         		—
         		1.51
    2 1.44 1.6 1770
         		5.29 5.71
    3 3.24 3.6 1770 5.29 5.71
    4 5.76 6.4 1570 9.41 10.2
    5 9 10 1570 14.7 15.9
    6 13 14.4 1570 21.1 22.9
    8 23 25.6 1570
         		33.4 40
    10 36 40 1570 52.2 56.3
    12 51.8 57.6 1470 75.1 81.1
    16 92.2
         		102.4 1170 134 144
    18 116.6 129.6 1070
         		169 183
    20 144 160 1070 209 225


    6X19+FC,6X19+IWS(7X19)

    Diameter
         		Weight
         		Tensile Strength
         		Min. Breaking Strength
    mm
         		kg/100m
         		( N/mm² )
         		kN
    FC IWS FC IWS
    0.75 — 0.23 1870
         		—
         		0.39
    1 —
         		0.41 1870
         		—
         		0.69
    1.2 —
         		0.59 1870
         		—
         		1
    1.5 —
         		0.92 1870 —
         		1.56
    2 —
         		1.64 1770
         		—
         		2.63
    2.5 —
         		2.55 1770 —
         		4.11
    3 3.24 3.67 1770 4.9 5.91
    4 5.76 6.53 1770 8.7 10.51
    5 9 10.2 1770
         		13.6 16.43
    6 13 14.4 1770
         		19.6 23.65
    8 23 25.6 1570 30.8 37.3
    10 36 40 1570 48.2 58.3
    12 51.8 57.6 1570 69.4 83.9
    14 70.6 78.4 1570 94.6 114.2
    16 92.2 102.4 1470
         		115 125
    18 116.6 129.6 1270 146 158
    20 144 160 1270 181 195
    22 174.2 193.6 1070 158 172
    24 207.4 230.4 1070 188 204
    26 243.4 270.4 1070 221 240
    28 282.2 313.6 1070 257 278

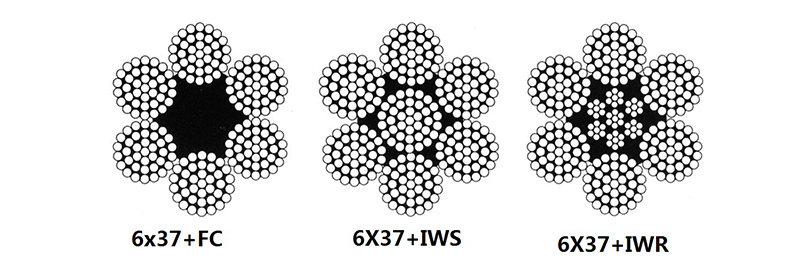

    6X37+FC,7X37

    Diameter
         		Weight
         		Tensile Strength
         		Min. Breaking Strength
    mm
         		kg/100m
         		( N/mm² )
         		kN
    FC IWS FC IWS
    4 5.8 6.6 1770
         		8.4
         		9.8
    6 13.1
         		14.8 1770
         		18.8
         		23.5
    8 23.4
         		26.2 1770
         		33
         		39
    10 36.5
         		41 1570 46.3
         		54
    12 52.6
         		59 1770
         		67
         		78
    16 93.4
         		105 1570 119
         		139
    18 118.3 132.8 1570 150 175
    20 146 164 1570 185 217
    22 176.7 198.4 1470
         		196 230
    24 210.2 236.2 1270
         		216 253
    26 246.7 277.2 1270 254 300
    28 286.2 321.4 1070 248 290
    30 328.5 369 1070 285 333
    32 373.8 419.8 1070 410 480
    36 473 531.4 1070 410 480

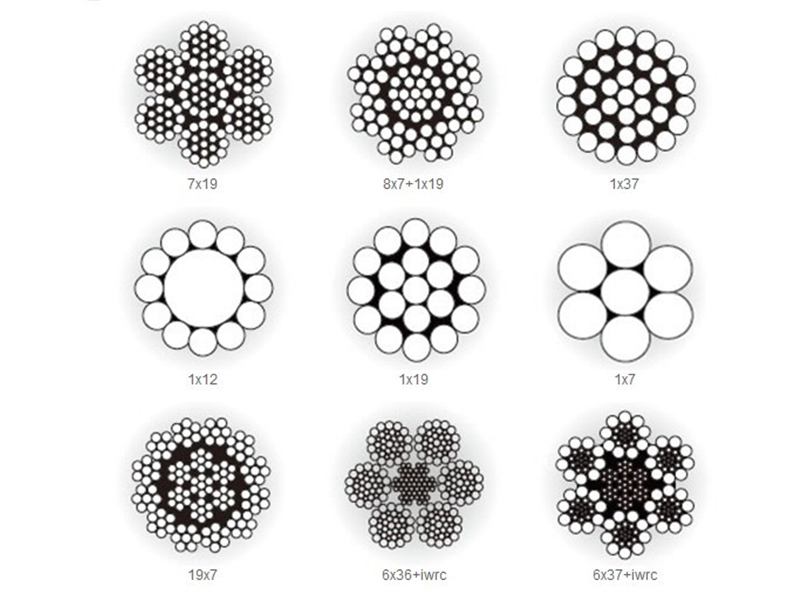

    19X7

    Diameter
         		Weight
         		Tensile Strength
         		Min. Breaking Strength
    mm
         		kg/100m
         		( N/mm² )
         		kN
    4 6.43 1770 9.3
    5 10 1770 14.5
    6 14.5 1770 20.9
    8 25.7 1770 37.2
    10 40.2 1570 51.5
    12 57.9 1570 74.2
    14 78.8 1570 101
    16 103 1570 132
    18 130 1570 167
    20 161 1570 206
    24 231 1270 282
    26 272 1270 327
    28 315 1270 327


    6X36SW+IWRC

    Diameter
         		Weight
         		Tensile Strength
         		Min. Breaking Strength
    mm
         		kg/100m
         		( N/mm² )
         		kN
    6 15.05 1770 22.3
    8 26.75 1770 39.7
    10 41.8 1770 59.2
    12 60.19 1570 80.6
    14 81.93 1570 109
    16 107.01 1570 143
    18 135.43 1570 181
    20 167.2 1570 221
    24 240.77 1270 258
    26 282.57 1270 302
    28 327.71 1270 350


    6X19S,6X19W

    Diameter
         		Weight
         		Tensile Strength
         		Min. Breaking Strength
    m
         		kg/100m
         		( N/mm² )
         		kN
    3 6.43 1770 5.8
    4 6.43 1770 10.2
    5 10 1770 15.4
    6 14.5 1770 21.1
    8 25.7 1770 37.5
    10 40.2 1570 58.6
    12 57.9 1570 58.6
    14 78.8 1570 102
    16 103 1570 133
    18 130 1570 168
    20 161 1570 208
    24
         		231 1270 240
    26 272 1270 280.8
    28 315 1270 326


    Stainless Steel Material

    Material Type
         		C%
         		Ni%
         		Cr% P% S% Si% Mn% Mo%
    304 ≤0.07 8.0-10.5
         		17-19
         		≤0.035
         		≤0.03
         		≤1.0
         		≤2.0
         		—
    316 ≤0.08 10.0-14.0 16-18.5 ≤0.035
         		≤0.03
         		≤1.0
         		≤2.0
         		2.0-3.0


    Material Chemical Analysis

    Material Grade

    		C%
    		 Ni%
    		 Cr% P% S% Si% Mn% Mo%

    AISI304

    		≤0.08 8.0-10.5
    		 18-20
    		 ≤0.045
    		 ≤0.03
    		 ≤0.75
    		 ≤2.0
    		 —

    AISI304L

    		≤0.03 8.0-10.5 18-20 ≤0.045
    		 ≤0.03
    		 ≤0.75
    		 ≤2.0
    		 —

    AISI316

    		≤0.08
    		 10.0-14.0
    		 16-18.0
    		 ≤0.045
    		 ≤0.03
    		 ≤0.75
    		 ≤2.0

    2.0-3.0

    AISI316L

    		≤0.03
    		 10.0-14.0
    		 16-18.0
    		 ≤0.035
    		 ≤0.03
    		 ≤1.0
    		 ≤2.0

    2.0-3.0

Stainless Steel Wire Rope
