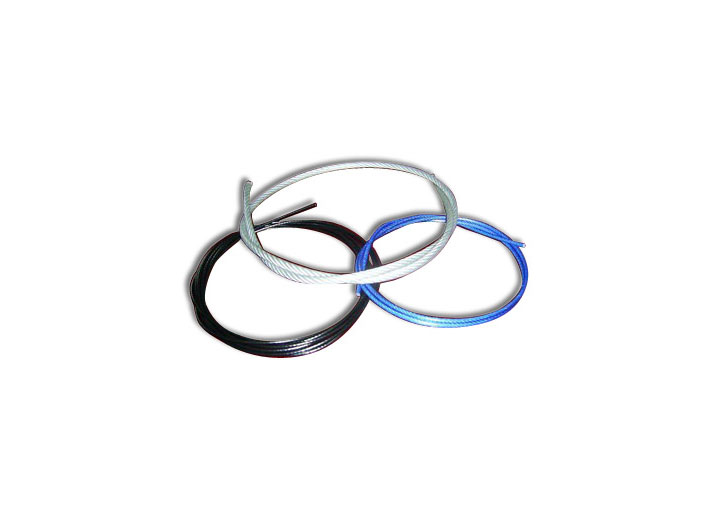

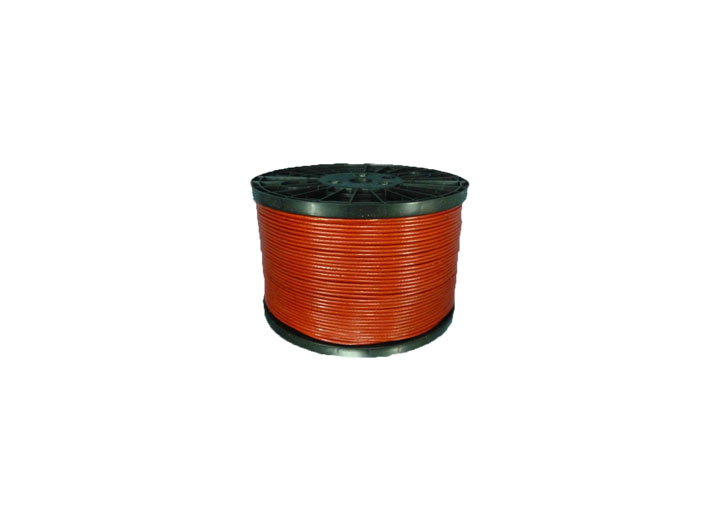

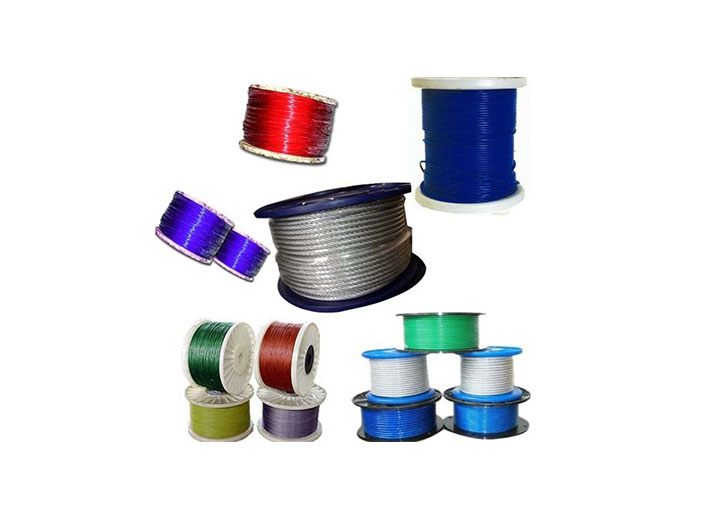

PVC Coated Wire Rope

Category:wire rope

  • 售后QQ: 点击这里给我发消息
  • 售后QQ: 点击这里给我发消息
Hotline:+86-532-68075169
  • 1x19 PVC Coated Stainless Steel Wire Rope

    DIA.
    Weight
    Tensile Strength
    Min. Breaking Strength
    mm
    kg/100m
    N/ mm2
    KN
    0.5
    0.125 1770 0.230
    0.8
    0.32 1770 0.595
    1 0.5 1770 0.93
    1.5 1.13 1770 2.09
    2
    2 1770 3.72
    2.5 3.13 1570 5.15
    3 4.5
    1570 7.42
    4 8 1570 13.19
    5
    12.5 1570 20.61
    6
    18 1270 24
    8 32 1170 39.31
    10 50 1070 56.18
    12 72 1070 80.89


    1x7 PVC Coated Stainless Steel Wire Rope

    DIA.
    Weight
    Tensile Strength
    Min. Breaking Strength
    mm
    kg/100m
    N/ mm2
    KN
    0.12
    0.0075 1870 0.015
    0.15 0.012 1870 0.023
    0.2 0.02 1870 0.041
    0.3 0.047 1870 0.092
    0.5 0.13 1870 0.257
    0.6 0.19 1770 0.35
    0.8 0.35 1770 0.622
    1 0.52 1770 0.973
    1.5
    1.16 1570 1.94
    2
    2.07 1570 3.45
    3
    4.65 1570 7.76
    4 8.27 1570 13.8
    5 12.93
    1570 21.57
    6 18.2
    1270 25.12
    8 32.5 1170 41.15


    1x12 PVC Coated Stainless Steel Wire Rope

    DIA.
    Weight
    Tensile Strength
    Min. Breaking Strength
    mm
    kg/100m
    N/ mm2
    KN
    0.5
    0.12 1770 0.232
    0.8 0.307 1770 0.595
    1 0.48 1770 0.93
    1.5 1.08 1770 2.09
    2 1.92 1770 3.72
    3 4.32 1570 7.42


    1x37 PVC Coated Stainless Steel Wire Rope


    DIA.
    Weight
    Tensile Strength
    Min. Breaking Strength
    mm
    kg/100m
    N/ mm2
    KN
    3 4.5 1770 8.16
    4 8 1770 14.5
    5 12.5 1570 20.1
    6 18 1570 29
    8 32 1570 51.5
    10 50 1270 66.68
    12 72 1270 96.01

PVC Coated Wire Rope

Wechat consulting

微信扫码咨询
Consult now 返回

Details

1x19 PVC Coated Stainless Steel Wire Rope

DIA.
Weight
Tensile Strength
Min. Breaking Strength
mm
kg/100m
N/ mm2
KN
0.5
0.125 1770 0.230
0.8
0.32 1770 0.595
1 0.5 1770 0.93
1.5 1.13 1770 2.09
2
2 1770 3.72
2.5 3.13 1570 5.15
3 4.5
1570 7.42
4 8 1570 13.19
5
12.5 1570 20.61
6
18 1270 24
8 32 1170 39.31
10 50 1070 56.18
12 72 1070 80.89


1x7 PVC Coated Stainless Steel Wire Rope

DIA.
Weight
Tensile Strength
Min. Breaking Strength
mm
kg/100m
N/ mm2
KN
0.12
0.0075 1870 0.015
0.15 0.012 1870 0.023
0.2 0.02 1870 0.041
0.3 0.047 1870 0.092
0.5 0.13 1870 0.257
0.6 0.19 1770 0.35
0.8 0.35 1770 0.622
1 0.52 1770 0.973
1.5
1.16 1570 1.94
2
2.07 1570 3.45
3
4.65 1570 7.76
4 8.27 1570 13.8
5 12.93
1570 21.57
6 18.2
1270 25.12
8 32.5 1170 41.15


1x12 PVC Coated Stainless Steel Wire Rope

DIA.
Weight
Tensile Strength
Min. Breaking Strength
mm
kg/100m
N/ mm2
KN
0.5
0.12 1770 0.232
0.8 0.307 1770 0.595
1 0.48 1770 0.93
1.5 1.08 1770 2.09
2 1.92 1770 3.72
3 4.32 1570 7.42


1x37 PVC Coated Stainless Steel Wire Rope


DIA.
Weight
Tensile Strength
Min. Breaking Strength
mm
kg/100m
N/ mm2
KN
3 4.5 1770 8.16
4 8 1770 14.5
5 12.5 1570 20.1
6 18 1570 29
8 32 1570 51.5
10 50 1270 66.68
12 72 1270 96.01
