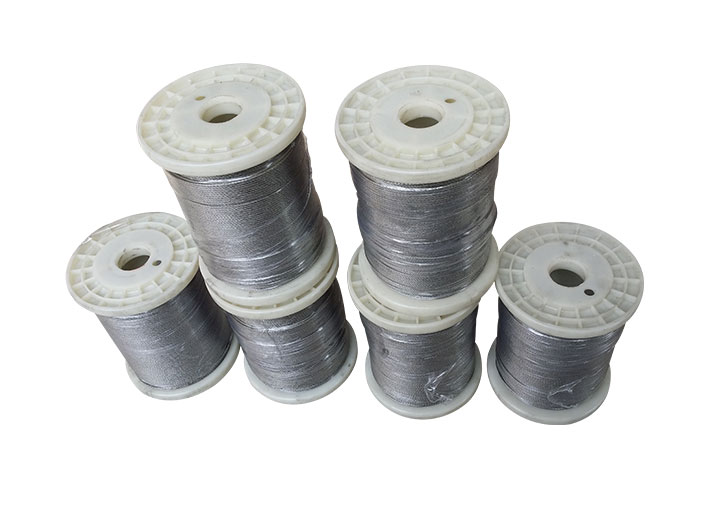

Steel Wire Rope

Category：wire rope

售后QQ：
售后QQ：

Hotline：+86-532-68075169

Steel Wire Rope

Wechat consulting

Consult now 返回

Details

6×7 or 6×9 Steel Wire Rope（Ungalvanized and Galvanized)

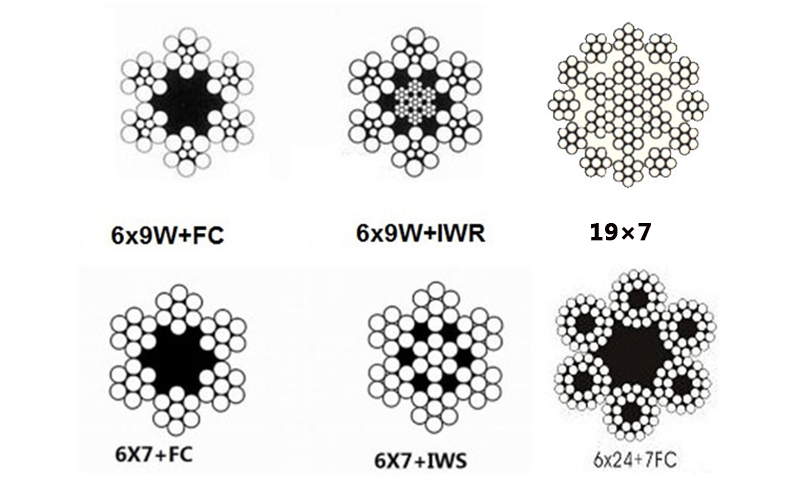

（Construction）：6×7+FC 6×7+IWS 6×9W+FC 6×9W+IWR（Ungalvanized and Galvanized)

Nominal Diameter	Approx.Weight			Nominal Tensile Strength of Rope(Mpa)
				1570		1670		1770		1870		1960
				Minimun Breaking Load of Rope
D	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	kg/100m			(KN)
2	1.4	1.38	1.55	2.08	2.25	2.22	2.4	2.35	2.54	2.48	2.69	2.6	2.81
3	3.16	3.10	3.48	4.69	5.07	4.99	5.4	5.29	5.72	5.59	6.04	5.86	6.33
4	5.62	5.5	6.19	8.34	9.02	8.87	9.59	9.4	10.2	9.93	10.7	10.4	11.3
5	8.87	8.60	9.68	13	14.1	13.9	15	14.7	15.9	15.5	16.8	16.3	17.6
6	12.6	12.4	13.9	18.8	20.3	20	21.6	21.2	22.9	22.4	24.2	23.4	25.3
7	17.2	16.9	19	25.5	27.6	27.2	29.4	28.8	31.1	30.4	32.9	31.9	34.5
8	22.5	22.0	24.8	33.4	36.1	35.5	38.4	37.6	40.7	39.7	43	41.7	45
9	28.4	27.9	31.3	42.2	45.7	44.9	48.6	47.6	51.5	50.3	54.4	52.7	57
10	35.1	34.4	38.7	52.1	56.4	55.4	60	58.8	63.5	62.1	67.1	65.1	70.4
11	42.5	41.6	46.8	63.1	68.2	67.1	72.5	71.1	76.9	75.1	81.2	78.7	85.1
12	50.5	49.5	55.7	75.1	81.2	79.8	86.3	84.6	91.5	89.4	96.7	93.7	101
13	59.3	58.1	65.4	88.1	95.3	93.7	101	99.3	107	105	113	110	119
14	68.8	67.4	75.9	102	110	109	118	115	125	122	132	128	138
16	89.9	88.1	99.1	133	144	142	153	150	163	159	172	167	180
17	101	99.4	112	151	163	160	173	170	184	179	194	188	203
18	114	114	125	169	183	180	194	190	206	201	218	211	228
20	140	138	155	209	225	222	240	235	254	248	269	260	281
22	170	167	187	252	273	268	290	284	308	300	325	315	341
24	202	198	223	300	325	319	345	338	366	358	387	375	405
26	237	233	262	352	381	375	405	397	430	420	454	440	476
28	275	270	303	409	442	435	470	461	498	487	526	510	552
30	316	310	348	469	507	499	540	529	572	559	604	586	633

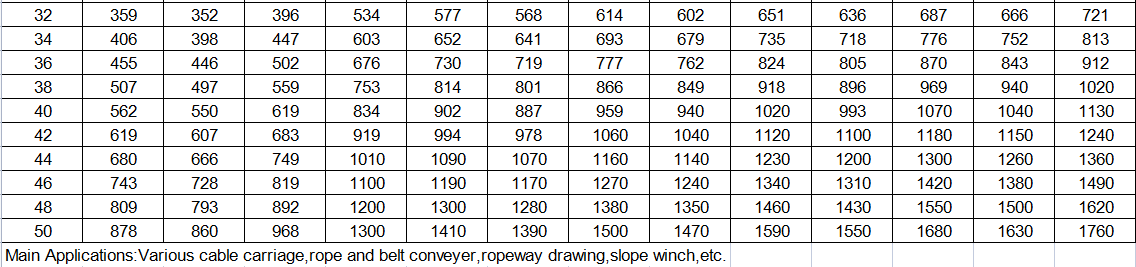

32	359	352	396	534	577	568	614	602	651	636	687	666	721
34	406	398	447	603	652	641	693	679	735	718	776	752	813
36	455	446	502	676	730	719	777	762	824	805	870	843	912
38	507	497	559	753	814	801	866	849	918	896	969	940	1020
40	562	550	619	834	902	887	959	940	1020	993	1070	1040	1130
42	619	607	683	919	994	978	1060	1040	1120	1110	1180	1150	1240
44	680	666	749	1010	1090	1070	1160	1140	1230	1200	1300	1260	1360
46	743	728	819	1100	1190	1170	1270	1240	1340	1310	1420	1380	1490
48	809	793	892	1200	1300	1280	1380	1350	1460	1430	1550	1500	1620
50	878	860	968	1300	1410	1390	1500	1470	1590	1550	1680	1630	1760

Main Applications:Various cable carriage,rope and belt conveyer,ropeway drawing,slope winch,etc.

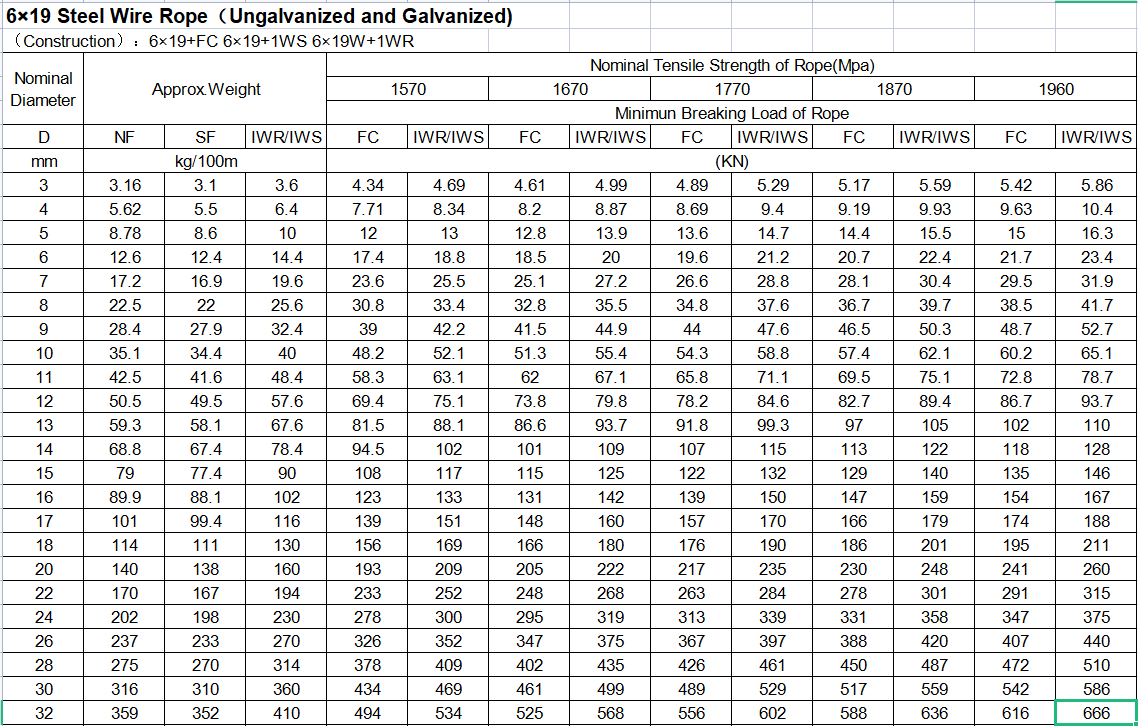

6×19 Steel Wire Rope（Ungalvanized and Galvanized)

（Construction）：6×19+FC 6×19+1WS 6×19W+1WR

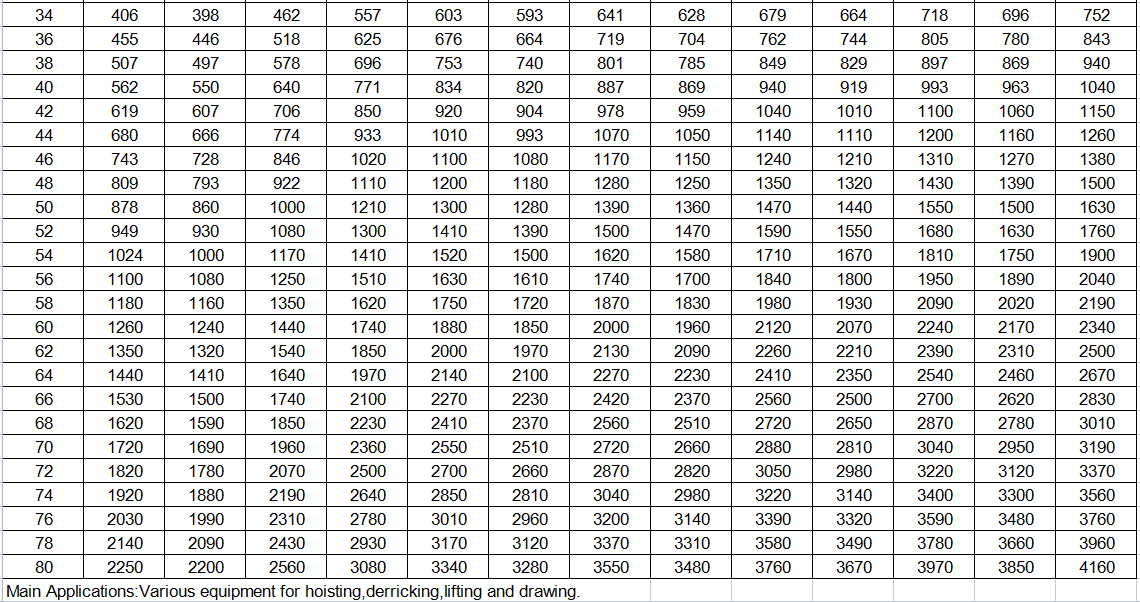

Nominal Diameter	Approx.Weight			Nominal Tensile Strength of Rope(Mpa)
				1570		1670		1770		1870		1960
				Minimun Breaking Load of Rope
D	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	kg/100m			(KN)
3	3.16	3.1	3.6	4.34	4.69	4.61	4.99	4.89	5.29	5.17	5.59	5.42	5.86
4	5.62	5.5	6.4	7.71	8.34	8.2	8.87	8.69	9.4	9.19	9.93	9.63	10.4
5	8.78	8.6	10	12	13	12.8	13.9	13.6	14.7	14.4	15.5	15	16.3
6	12.6	12.4	14.4	17.4	18.8	18.5	20	19.6	21.2	20.7	22.4	21.7	23.4
7	17.2	16.9	19.6	23.6	25.5	25.1	27.2	26.6	28.8	28.1	30.4	29.5	31.9
8	22.5	22	25.6	30.8	33.4	32.8	35.5	34.8	37.6	36.7	39.7	38.5	41.7
9	28.4	27.9	32.4	39	42.2	41.5	44.9	44	47.6	46.5	50.3	48.7	52.7
10	35.1	34.4	40	48.2	52.1	51.3	55.4	54.3	58.8	57.4	62.1	60.2	65.1
11	42.5	41.6	48.4	58.3	63.1	62	67.1	65.8	71.1	69.5	75.1	72.8	78.7
12	50.5	49.5	57.6	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4	86.7	93.7
13	59.3	58.1	67.6	81.5	88.1	86.6	93.7	91.8	99.3	97	105	102	110
14	68.8	67.4	78.4	94.5	102	101	109	107	115	113	122	118	128
15	79	77.4	90	108	117	115	125	122	132	129	140	135	146
16	89.9	88.1	102	123	133	131	142	139	150	147	159	154	167
17	101	99.4	116	139	151	148	160	157	170	166	179	174	188
18	114	111	130	156	169	166	180	176	190	186	201	195	211
20	140	138	160	193	209	205	222	217	235	230	248	241	260
22	170	167	194	233	252	248	268	263	284	278	301	291	315
24	202	198	230	278	300	295	319	313	339	331	358	347	375
26	237	233	270	326	352	347	375	367	397	388	420	407	440
28	275	270	314	378	409	402	435	426	461	450	487	472	510
30	316	310	360	434	469	461	499	489	529	517	559	542	586
32	359	352	410	494	534	525	568	556	602	588	636	616	666
34	406	398	462	557	603	593	641	628	679	664	718	696	752
36	455	446	518	625	676	664	719	704	762	744	805	780	843
38	507	497	578	696	753	740	801	785	849	829	897	869	940
40	562	550	640	771	834	820	887	869	940	919	993	963	1040
42	619	607	706	850	920	904	978	959	1040	1010	1100	1060	1150
44	680	666	774	933	1010	993	1070	1050	1140	1110	1200	1160	1260
46	743	728	846	1020	1100	1080	1170	1150	1240	1210	1310	1270	1380
48	809	793	922	1110	1200	1180	1280	1250	1350	1320	1430	1390	1500
50	878	860	1000	1210	1300	1280	1390	1360	1470	1440	1550	1500	1630
52	949	930	1080	1300	1410	1390	1500	1470	1590	1550	1680	1630	1760
54	1024	1000	1170	1410	1520	1500	1620	1580	1710	1670	1810	1750	1900
56	1100	1080	1250	1510	1630	1610	1740	1700	1840	1800	1950	1890	2040
58	1180	1160	1350	1620	1750	1720	1870	1830	1980	1930	2090	2020	2190
60	1260	1240	1440	1740	1880	1850	2000	1960	2120	2070	2240	2170	2340
62	1350	1320	1540	1850	2000	1970	2130	2090	2260	2210	2390	2310	2500
64	1440	1410	1640	1970	2140	2100	2270	2230	2410	2350	2540	2460	2670
66	1530	1500	1740	2100	2270	2230	2420	2370	2560	2500	2700	2620	2830
68	1620	1590	1850	2230	2410	2370	2560	2510	2720	2650	2870	2780	3010
70	1720	1690	1960	2360	2550	2510	2720	2660	2880	2810	3040	2950	3190
72	1820	1780	2070	2500	2700	2660	2870	2820	3050	2980	3220	3120	3370
74	1920	1880	2190	2640	2850	2810	3040	2980	3220	3140	3400	3300	3560
76	2030	1990	2310	2780	3010	2960	3200	3140	3390	3320	3590	3480	3760
78	2140	2090	2430	2930	3170	3120	3370	3310	3580	3490	3780	3660	3960
80	2250	2220	2560	3080	3340	3280	3550	3480	3760	3670	3970	3850	4160

Main Applications:Various equipment for hoisting,derricking,lifting and drawing.

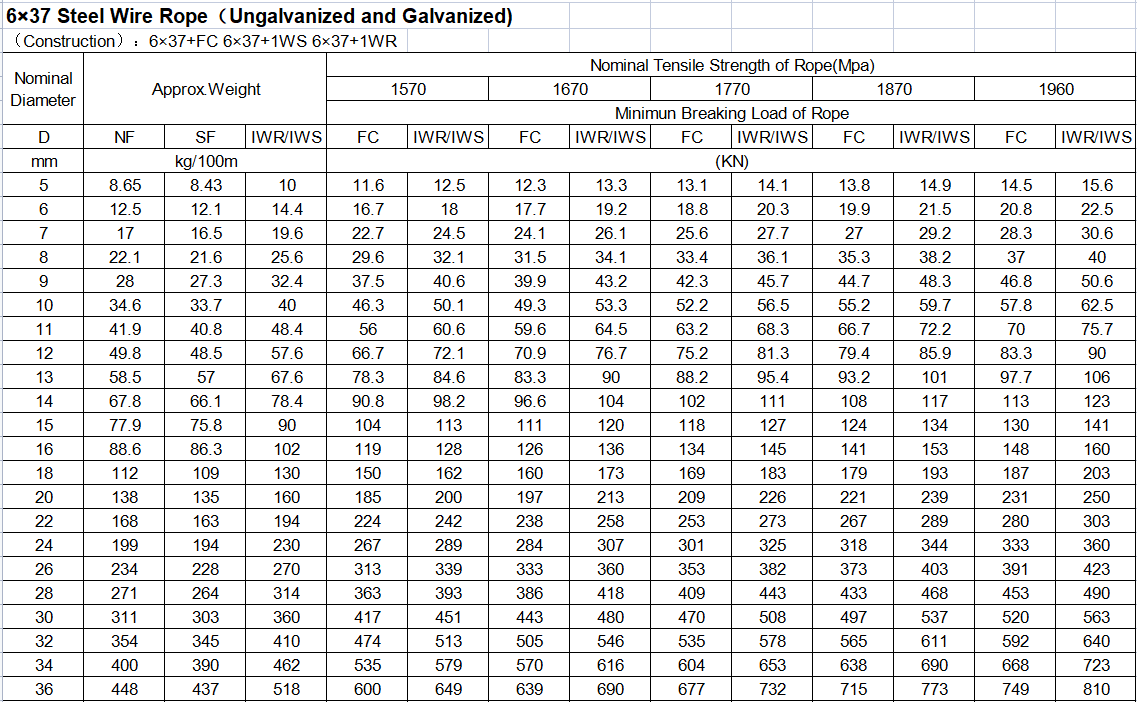

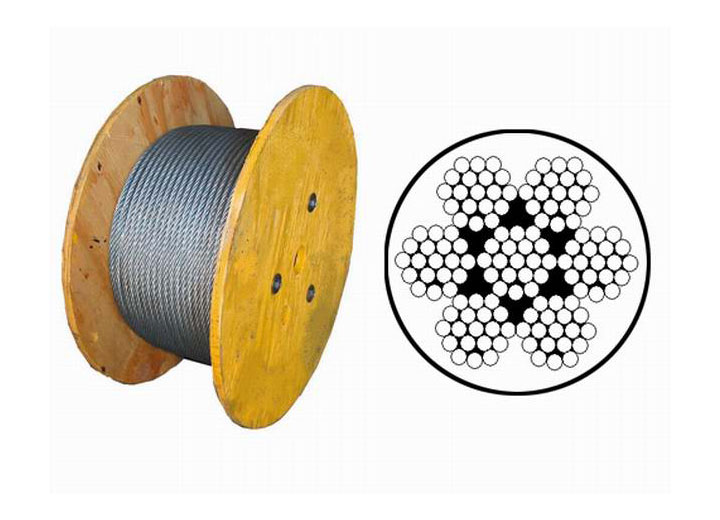

6×37 Steel Wire Rope（Ungalvanized and Galvanized)

（Construction）：6×19S+FC 6×19S+1WR 6×19W+FC 6×19W+1WR

Nominal Diameter	Approx.Weight			Nominal Tensile Strength of Rope(Mpa)
				1570		1670		1770		1870		1960
				Minimun Breaking Load of Rope
D	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	kg/100m			(KN)
5	8.65	8.43	10	11.6	12.5	12.3	13.3	13.1	14.1	13.8	14.9	14.5	15.6
6	12.5	12.1	14.4	16.7	18	17.7	19.2	18.8	20.3	19.9	21.5	20.8	22.5
7	17	16.5	19.6	22.7	24.5	24.1	26.1	25.6	27.7	27	29.2	28.3	30.6
8	22.1	21.6	25.6	29.6	32.1	31.5	34.1	33.4	36.1	35.3	38.2	37	40
9	28	27.3	32.4	37.5	40.6	39.9	43.2	42.3	45.7	44.7	48.3	46.8	50.6
10	34.6	33.7	40	46.3	50.1	49.3	53.3	52.2	56.5	55.2	59.7	57.8	62.5
11	41.9	40.8	48.4	56	60.6	59.6	64.5	63.2	68.3	66.7	72.2	70	75.7
12	49.8	48.5	57.6	66.7	72.1	70.9	76.7	75.2	81.3	79.4	85.9	83.3	90
13	58.5	57	67.6	78.3	84.6	83.3	90	88.2	95.4	93.2	101	97.7	106
14	67.8	66.1	78.4	90.8	98.2	96.6	104	102	111	108	117	113	123
15	77.9	75.8	90	104	113	111	120	118	127	124	134	130	141
16	88.6	86.3	102	119	128	126	136	134	145	141	153	148	160
18	112	109	130	150	162	160	173	169	183	179	193	187	203
20	138	135	160	185	200	197	213	209	226	221	239	231	250
22	168	163	194	224	242	238	258	253	273	267	289	280	303
24	199	194	230	267	289	284	307	301	325	318	344	333	360
26	234	228	270	313	339	333	360	353	382	373	403	393	423
28	271	264	314	363	393	386	418	409	443	433	468	453	490
30	311	303	360	417	451	443	480	470	508	497	537	520	563
32	354	345	410	474	513	505	546	535	578	565	611	592	640
34	400	390	462	535	579	570	616	604	653	638	690	668	723
36	448	437	518	600	649	639	690	677	732	715	773	749	810

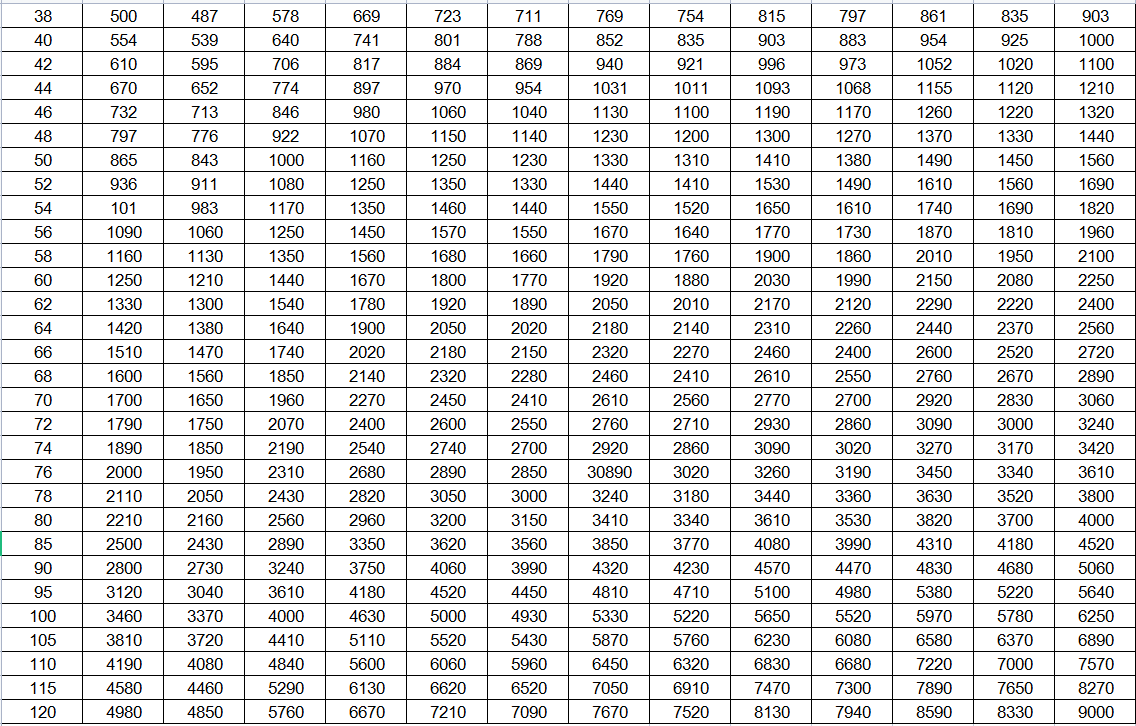

38	500	487	578	669	723	711	769	754	815	797	861	835	903
40	554	539	640	741	801	788	852	835	903	883	954	925	1000
42	610	595	706	817	884	869	940	921	996	973	1052	1020	1100
44	670	652	774	897	970	954	1031	1011	1093	1068	1155	1120	1210
46	732	713	846	980	1060	1040	1130	1100	1190	1170	1260	1220	1320
48	797	776	922	1070	1150	1140	1230	1200	1300	1270	1370	1330	1440
50	865	843	1000	1160	1250	1230	1330	1310	1410	1380	1490	1450	1560
52	936	911	1080	1250	1350	1330	1440	1410	1530	1490	1610	1560	1690
54	101	983	1170	1350	1460	1440	1550	1520	1650	1610	1740	1690	1820
56	1090	1060	1250	1450	1570	1550	1670	1640	1770	1730	1870	1810	1960
58
60
62
64
66
68
70
72
74
76
78
80
85
90
95
100
105
110
115
120

Main Applications:Various equipment for hoisting,derricking,lifting and drawing.
